How Do Directional Control Valves Affect Oil Flow?

Hydraulic systems are the backbone of countless industrial, agricultural, and mobile machinery operations. At the core of these systems is the movement of oil under pressure, which transmits energy to perform mechanical work. Controlling the direction of this oil flow is essential for the system’s function, and that’s where directional control valves (DCVs) come in.

These valves determine where and how hydraulic fluid moves through the system, influencing performance, safety, and efficiency. Below, we’ll explore how directional control valves affect oil flow and why their role is so crucial in hydraulic applications.

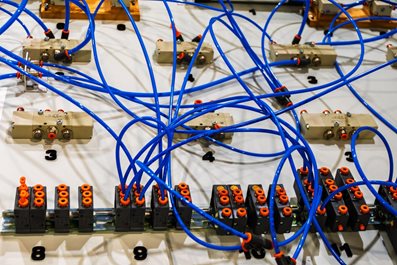

What Are Directional Control Valves?

Directional control valves are mechanical or electro-mechanical devices used to control the path of fluid within a hydraulic system. They direct oil to specific locations within the circuit to activate or deactivate hydraulic actuators such as cylinders or motors.

DCVs typically come in two-way, three-way, or four-way configurations, depending on how many ports and positions they provide.  Directional control valves can be operated manually, electrically (via solenoids), hydraulically, or pneumatically, making them adaptable for a wide range of applications.

How Directional Control Valves Influence Oil Flow

Direction control valves directly impact oil flow in several critical ways:

1. Flow Direction
   By shifting internal components such as spools or poppets, DCVs open or close passageways that direct oil to the desired actuator. For example, a valve may route oil to one end of a  cylinder to extend it, while simultaneously allowing return flow from the opposite end.
2. System Control
   These valves act as gatekeepers for hydraulic motion. When closed, they can block flow entirely; when open, they allow movement and energy transfer. This start-stop control is fundamental for sequencing and timing operations in machinery.
3. Pressure Distribution
   Valve position can also influence system pressure by altering flow paths. Incorrect valve positioning can result in backpressure or pressure imbalances, which may reduce performance or even cause damage.

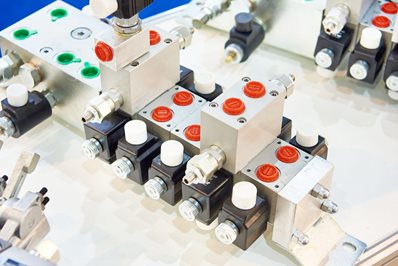

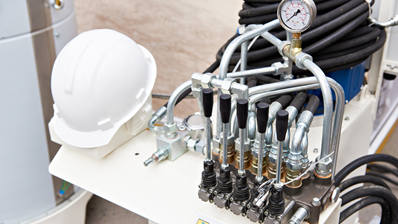

Common Types of Hydraulic Directional Control Valves and Their Applications

There are several types of directional hydraulic control valves, each suited to specific tasks:

• Spool Valves: These are the most common type, where a spool slides within a housing to open or close different flow paths. They offer smooth control and are ideal for applications requiring frequent switching.
• Poppet Valves: Instead of a sliding spool, poppet valves use a plug and seat mechanism to open or block flow. They are typically used in high-pressure or fast-switching scenarios where tight sealing is essential.
• Pilot-Operated vs. Solenoid-Operated Valves: Pilot-operated valves use hydraulic pressure to move the main valve mechanism, allowing for smoother operation under high flow rates. Solenoid-operated valves rely on electric current to shift the valve and are commonly used in automation and remote control applications.

Each of these types has distinct advantages depending on system requirements, including response time, durability, and flow rate capacity.

Understanding Directional Control Valve Symbols

In hydraulic schematics, directional control valve symbols provide a visual representation of how a valve functions within a system. These standardised symbols follow ISO 1219-1 or ANSI standards and help technicians and engineers quickly identify valve configurations, port positions, and flow paths.

Each square or rectangle in the symbol represents a possible valve position, with arrows indicating the direction of oil flow. Closed ports are shown as capped or blocked lines, while lines crossing a symbol suggest continuous flow paths. The number of boxes denotes the number of valve positions—typically two or three—and the number of ports (e.g., P for pressure, T for tank, A/B for actuator lines) is indicated by the lines entering or exiting the symbol.

For example, a 4/3 valve symbol shows a valve with four ports and three positions, commonly used for controlling double-acting cylinders. The centre position may block all flow, allow free return to the tank, or hold actuators in place, depending on the valve's function. Understanding these symbols is essential for interpreting hydraulic circuit diagrams and ensuring proper valve selection, troubleshooting, and maintenance.

Effects of Malfunctioning or Poorly Selected DCVs

When a directional control valve is improperly selected, damaged, or poorly maintained, it can severely impact oil flow and the performance of the entire hydraulic system.

Undersized or partially blocked hydraulic DC valves can restrict flow, resulting in sluggish operation and reduced efficiency. Misrouted or restricted flow can also lead to excessive resistance, causing fluid temperatures to rise and accelerating system wear. Malfunctions may trigger sudden pressure spikes that threaten the integrity of sensitive components like pumps and seals.

In some cases, valve failures may lead to inconsistent or incomplete actuator movements, compromising both productivity and safety. These potential issues highlight the critical importance of selecting the right valve and performing regular maintenance to ensure reliable system performance.

Selecting the Right Valve for Optimal Oil Flow

Choosing the correct directional control valve involves more than matching port sizes. Factors to consider include:

• Flow Rate Requirements: The valve must accommodate the maximum expected flow without causing excessive pressure drop / back pressure.
• Operating Pressure: Ensure the valve can safely handle the pressure levels of the system.
• Application Type: Mobile machinery may require compact, robust valves, while factory automation might prioritize fast response times and remote control capability.
• Environmental Conditions: Dust, moisture, and temperature extremes can all influence valve performance and lifespan.

Correctly sizing and selecting your valve ensures efficient oil flow, reduces wear and tear on components, and minimises maintenance and downtime.

Precision and Reliability Start with the Right Valve

In any hydraulic system, direction control valves are essential for maintaining precise control, efficient operation, and long-term reliability. Choosing the right valve can mean the difference between smooth performance and costly downtime.
