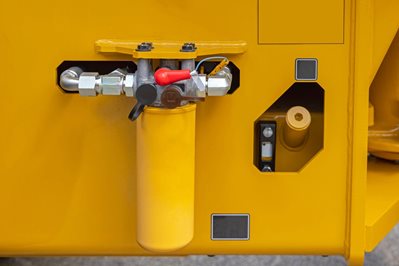

Your Guide to Hydraulic Filtration

Hydraulic systems rely on precision, and one of the most important factors in keeping them running smoothly is proper filtration. Whether you maintain heavy machinery or work in an industrial setting, knowing how hydraulic filter systems function can help you prevent costly downtime, extend equipment life, and ensure reliable performance.

The Role of Hydraulic Filters

Hydraulic filters act as the system’s first line of defence. They maintain fluid cleanliness, reduce maintenance intervals, and help extend the lifespan of both the fluid and the equipment. Proper filtration also stabilises fluid viscosity and temperature, further improving efficiency.

In any hydraulic system, contaminants can cause serious damage if they enter the fluid. Hydraulic fluid filtration plays a vital role in keeping the oil clean and ensuring that valves, pumps, and actuators operate correctly.

When fluid becomes contaminated, it can lead to excessive wear, inefficient operation, or even system failure. Filters remove particles such as dust, metal fragments, and moisture before they can circulate through sensitive components.

Common Sources of Contamination

Contamination can enter a hydraulic system in several ways. One of the most common sources is during the manufacturing or assembly process, when metal shavings or residues remain inside new components. Contaminants may also enter through faulty seals, worn hoses, or improper handling during fluid changes.

External dirt and dust are frequent culprits, especially in mobile machinery operating outdoors. Even hydraulic fluid itself can be a source of contamination if it is stored improperly or introduced without adequate filtration. Over time, normal component wear also generates  particles that circulate through the system.

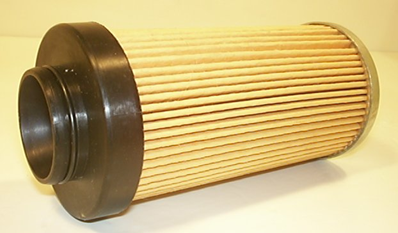

Types of Hydraulic Filters

There are several hydraulic filter types, each designed for a specific purpose within a hydraulic circuit. Each filter type plays a crucial part in maintaining overall system cleanliness. Understanding where and how these filters function can help you select the right one for your needs.

• Suction filters are located before the pump and protect it from large particles drawn from the reservoir.
• Pressure filters are installed after the pump to protect sensitive components such as valves and actuators from fine contaminants.
• Return line filters capture particles before the fluid returns to the reservoir, helping to prevent recontamination.

Other filter types include breather filters, which clean the air entering the reservoir, and offline filters (or kidney loop systems), which continuously clean hydraulic fluid without interrupting system operation.

Understanding Micron Ratings and Filter Efficiency

When evaluating hydraulic filtration systems, one of the most important specifications to consider is the micron rating. This measurement indicates the size of particles a filter can remove. For example, a 10-micron filter captures particles that are 10 microns or larger.

However, micron rating alone does not tell the whole story. Filter efficiency, often expressed as a Beta ratio, measures how effectively a filter captures contaminants of a given size. A higher Beta ratio indicates a more efficient filter.

Selecting the correct balance between micron rating and efficiency is important. While finer filters remove smaller particles, they can also restrict flow and increase pressure drop. The goal is to achieve clean fluid without compromising system performance.

Choosing the Right Filter for Your System

Selecting the right hydraulic filter depends on your system’s design, operating conditions, and cleanliness requirements. Start by reviewing your equipment manufacturer’s specifications. These often include the recommended filtration level and filter placement.

Next, consider the system’s operating pressure, flow rate, and environmental exposure. For example, mobile machinery working in dusty conditions may require stronger filtration than stationary equipment in controlled environments.
You should also not overlook serviceability. Filters that are easy to access and replace help reduce maintenance time. In some cases, using a combination of suction, pressure, and return filters provides the best protection.

Regular monitoring of filter conditions is equally important. Many systems now include clogging indicators or differential pressure gauges to alert operators when a filter needs to be replaced. By selecting filters that match your system’s operating needs, you help maintain consistent performance and minimise unplanned downtime.

How Often Do Hydraulic Filters Need to Be Replaced?

The frequency of filter replacement depends on several factors, including the type of equipment, operating environment, and system load. There is no single schedule that applies to every machine, but following a proactive maintenance plan is always beneficial. Modern hydraulic systems may include clogging indicators that signal when it is time to replace the filter.

A good rule of thumb is to replace hydraulic filters every 500 to 2,000 operating hours. However, this range can vary significantly. Systems that operate in harsh, dusty, or high-temperature conditions may require more frequent changes, while well-maintained systems in clean environments may go longer between replacements.
