16 US GPM @ 3600 GC HI-LOW CI G PM

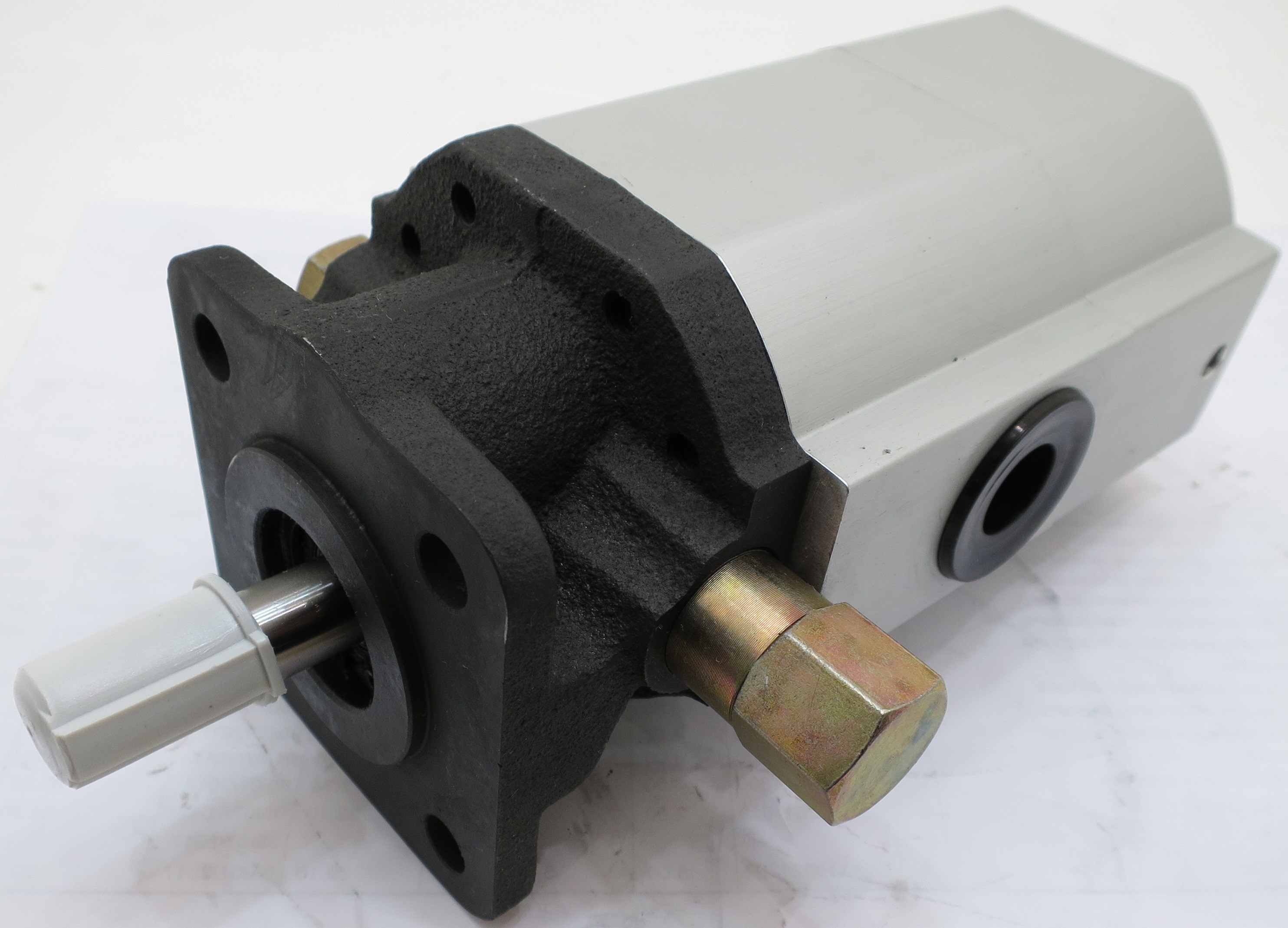

1'' BMP TUBE INLET & 1/2 NPTF OUTS 1300487 **HYDRAULIC GEAR PUMP16 US GPM - .258 CUBIC INCHES, .776 CUBIC INCHES, CLOCKWISE 1/2" DIAMETER SHAFT, 1.5" LONG, 4 BOLT SAE AA 2" x 2" HOLE CENTRES SQUARE MOUNTING FLANGE 1" TUBE INLET, 1/2" NPT PORT OVERALL LENGTH FACE OF FLANGE TO FACE OF REAR COVER: 5.47", FACE OF FLANGE TO CENTRE OF OUTLET PORT: 4.28", FACE OF FLANGE TO CENTRE OF INLET PORT: 3.09"Equivalent pump supplied to replace Haldex 1300487
Manufacturer : Originally HALDEX
Numbers on Part : 1300487
Weight (kg) : 3.3
Free Stock: 03
On Order : 0
