A Quick Overview of Hydraulic Vane Pumps
Hydraulic systems are the backbone of numerous industrial applications, providing the necessary power to drive machinery and perform critical tasks. At the heart of these systems are hydraulic pumps, which convert mechanical energy into hydraulic energy.
Among the various types of hydraulic pumps, vane pumps stand out for their efficiency and reliability. Below, we’ll provide a quick overview of hydraulic vane pumps, exploring their functionality, types, and benefits, and highlighting their vital role in enhancing the performance of hydraulic systems across diverse industries.
What Is a Hydraulic Vane Pump?

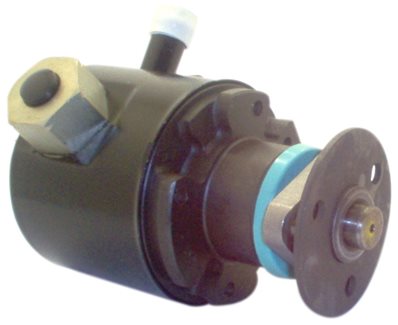

A hydraulic vane pump is a type of positive displacement pump that is commonly used in hydraulic systems to move fluid through the system. It consists of a housing, a rotor, and vanes that slide in and out of slots in the rotor. As the rotor turns, the vanes maintain contact with the inner surface of the housing, creating chambers that increase and decrease in volume to move the fluid.
Vane hydraulic pumps are known for their high efficiency, smooth operation, and ability to handle a wide range of viscosities. They are frequently used in applications such as automotive power steering, industrial machinery, and mobile equipment.
How Does a Hydraulic Vane Pump Work?
The operation of a hydraulic vane pump can be broken down into three main phases: suction, compression, and discharge.
- Suction Phase
As the rotor rotates within the pump housing, the vanes are pushed outward by centrifugal force and/or hydraulic pressure, forming sealed chambers between the vanes. When these chambers pass the suction port, they expand in volume, creating a vacuum that draws hydraulic fluid into the pump.
- Compression Phase
As the rotor continues to turn, the chambers move away from the suction port. The vanes maintain contact with the housing, and the fluid is trapped within the chambers. As the chambers move towards the discharge port, their volume decreases, compressing the fluid.
- Discharge Phase
When the chambers reach the discharge port, the fluid is expelled from the pump due to the decreasing volume of the chambers. The continuous rotation of the rotor ensures a steady flow of hydraulic fluid through the system.
This cyclical process of suction, compression, and discharge enables the hydraulic vane pump to efficiently move fluid through the hydraulic system, ensuring consistent performance and pressure. Diagrams illustrating these phases can further enhance understanding of the pump's operation.

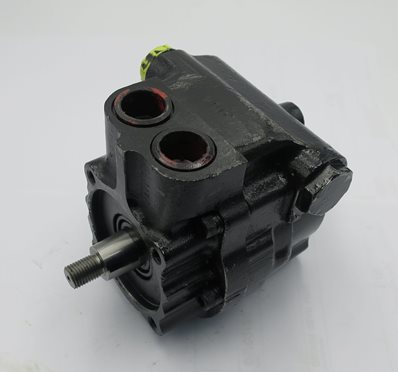

Common Hydraulic Vane Pump Types
Vane hydraulic pumps come in various types, each designed to meet specific needs and applications. Understanding these common types can help in selecting the right pump for a particular hydraulic system.
Fixed Displacement Vane Pumps
These pumps deliver a constant flow rate regardless of the pressure in the system. They are designed with a set volume per cycle, making them ideal for applications where the flow requirement is steady and predictable.
Common Uses: Fixed displacement vane pumps are commonly used in industrial machinery, automotive applications, and other systems where a consistent flow is crucial.
Variable Displacement Vane Pumps
Unlike fixed displacement pumps, variable displacement vane pumps can adjust the flow rate based on the system's pressure and demand. This adjustment is typically achieved through a mechanism that changes the pump's internal geometry or the angle of the rotor.
Common Uses: These pumps are suitable for applications requiring varying flow rates, such as mobile equipment, hydraulic presses, and other machinery with fluctuating demands.
Single-Stage Vane Pumps
Single-stage vane pumps have a single rotor and vane assembly. Their design is straightforward, providing reliable performance with fewer moving parts. This simplicity ensures ease of maintenance and consistent operation, making them well-suited for applications with moderate pressure requirements.
Common Uses: These pumps are commonly used in industrial machinery and automotive systems where moderate flow rates are adequate. Their compact and robust design makes them ideal for applications requiring steady and predictable flow, such as lubrication systems and hydraulic power units.
Multi-Stage Vane Pumps
Multi-stage vane pumps feature multiple rotor and vane assemblies. This design allows them to achieve higher pressures and flow rates by utilizing several stages of fluid compression. Each stage increases the overall output pressure, making these pumps highly efficient for demanding applications.
Common Uses: Multi-stage vane pumps are used in high-pressure hydraulic systems where significant hydraulic power is necessary. They are ideal for heavy-duty industrial applications, including high-pressure cleaning equipment, hydraulic presses, and other machinery requiring enhanced power and efficiency.
Benefits of Vane Pumps
Hydraulic vane pumps offer several key advantages that make them ideal for many applications.
- High Efficiency: Vane pumps have high volumetric efficiency, moving large fluid volumes with minimal energy loss, reducing operating costs, and enhancing system performance.
- Low Noise Operation: The smooth, continuous fluid flow and balanced design result in quieter operation, suitable for noise-sensitive environments like offices and hospitals.
- Versatility: They handle a wide range of fluid viscosities and work efficiently with various hydraulic fluids, increasing their adaptability for different applications.
- Longevity and Reliability: Self-compensating vanes maintain consistent performance and efficiency over time, making vane pumps durable and cost-effective.
- Easy Maintenance: Cartridge designs allow quick and simple replacement of internal components, minimizing downtime and maintenance costs.

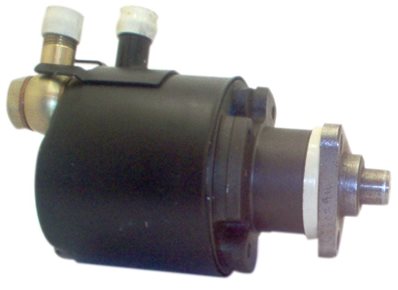

Find Your Ideal Vane Pump at White House Products Ltd.
Hydraulic vane pumps are an efficient, versatile, and reliable choice for a wide range of applications. At White House Products Ltd., we offer an extensive selection of high-quality vane pumps designed to meet your specific needs.
Whether you're looking for fixed displacement, variable displacement, or cartridge vane pumps, our expert team is here to help you find the perfect solution.
Contact us today to discuss your requirements and let our knowledgeable staff guide you in selecting the best vane pump for your application. Experience the superior performance and reliability that our vane pumps can bring to your hydraulic systems.
