How to Fix Jerky Hydraulics

Hydraulic systems are renowned for their power, precision, and reliability. However, when a hydraulic mechanism starts to move in a jerky, unpredictable manner, it can signal underlying issues that compromise performance and safety. Understanding how to fix jerky hydraulics, the potential causes, and troubleshooting effectively is essential to restoring smooth, consistent operation.

Common Causes of Jerky Hydraulic Movement

Before diving into repairs, it’s important to understand what might be causing the erratic movement in your hydraulic system. Several common issues can lead to jerky or inconsistent operation, many of which stem from fluid quality, pressure inconsistencies, or component wear. Identifying the root cause is the first step to restoring smooth performance.

Air in the System

Air in the hydraulic system lines or components can lead to erratic, jumpy motion. This is because air compresses and expands more than hydraulic fluid, leading to a loss of smooth power transmission. To resolve this, bleed the system thoroughly to eliminate any trapped air pockets. Proper sealing and regular maintenance can prevent air from re-entering the system.

Contaminated or Old Hydraulic Fluid

Dirty or degraded hydraulic fluid can significantly affect system performance. Contaminants such as metal particles, dirt, or water can interfere with valves, pumps, and actuators, leading to uneven operation. The solution is to replace old or contaminated hydraulic fluid and flush the system to remove debris. Using high-quality, manufacturer-recommended fluids and effective filtration helps extend system life and maintain efficiency.

Low Hydraulic Fluid Levels

Insufficient hydraulic fluid is a frequent cause of jerky or uneven system operation. When fluid levels drop too low, air can be drawn into the system, leading to cavitation and inconsistent actuator movement. Low fluid levels may also result in inadequate lubrication and cooling, further stressing system components. Regularly checking and topping up the fluid reservoir with the correct type of hydraulic oil is essential for maintaining smooth, reliable performance.

Improper Flow Control or Valve Issues

Sticking, worn, or improperly adjusted valves can cause inconsistent flow, leading to jerky motion. Check all hydraulic flow control valves for wear, valve drift, correct settings, and proper operation. Cleaning or replacing malfunctioning valves can restore consistent flow and smooth system performance.

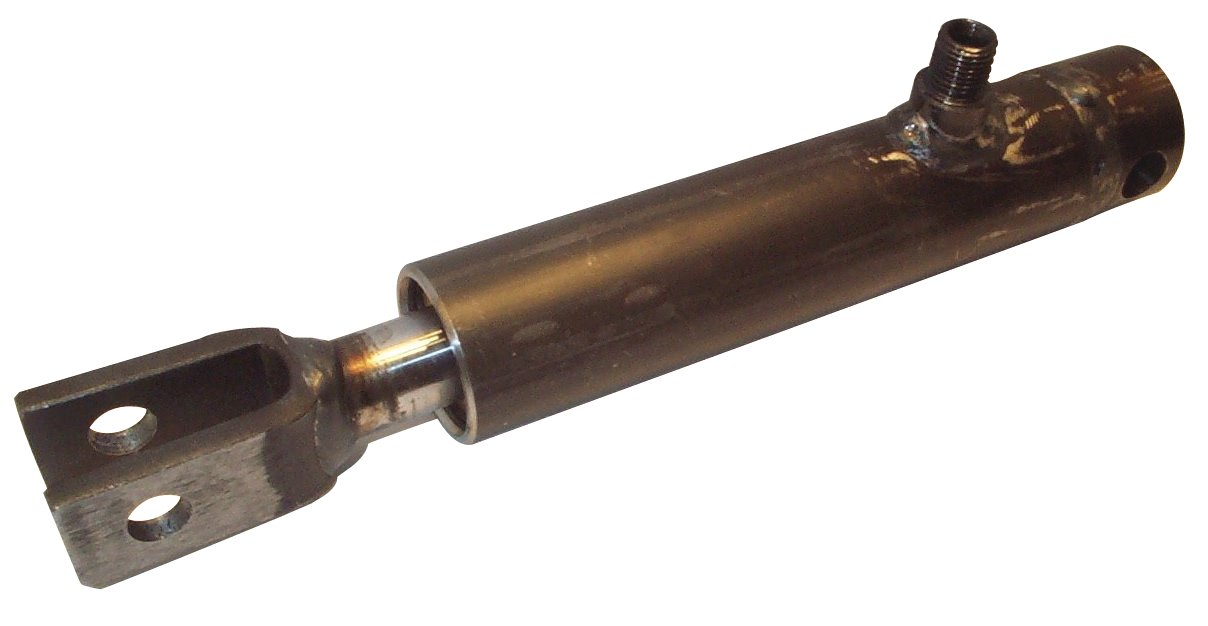

Cylinder Problems

Internal cylinder wear, bent rods, or faulty seals can result in uneven extension and retraction. These issues often manifest as sudden starts and stops in cylinder movement. Check for leaky hydraulic cylinders and inspect cylinders for visible damage. Repair or replacement may be necessary if faults are identified.

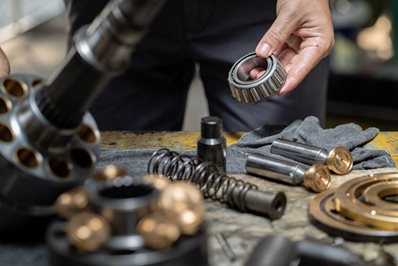

Inadequate System Pressure or Pump Failure

Insufficient pressure from a failing pump or clogged filter can lead to sluggish or uneven actuator performance. A system that cannot maintain the required hydraulic pressure will struggle to operate smoothly. Testing pump output and checking for pressure drops throughout the system can help diagnose and fix the problem. Replacing a failing pump and replacing or cleaning filters may be required.

Step-by-Step Troubleshooting Guide

Troubleshooting jerky hydraulics involves a methodical inspection of the entire system. The following steps provide a structured approach to identifying and resolving the issue.

1. Check Hydraulic Fluid Level and Condition

Begin by examining the hydraulic fluid reservoir. Ensure that the fluid level is within the recommended range and that the fluid appears clean and free of debris. If the fluid is dark, foamy, or has a burnt odour or has shiny particles in supensiion, it should be replaced. Refill with fresh, manufacturer-approved fluid of the correct viscocity  as necessary.

While inspecting the fluid, it’s also important to check the hydraulic filters. Clogged or dirty filters can restrict flow, increase system pressure, and contribute to jerky motion. Clean or replace any filters that appear contaminated or have exceeded their service interval. Proper filtration helps maintain consistent fluid quality and protects critical components from damage.

2. Bleed Air From the System

Air in the system can often be released by cycling the actuators slowly through their full range of motion several times. Use bleed valves if available, especially in high points of the system. Always consult the manufacturer’s guidelines to avoid introducing more air during the bleeding process. Watch for frothy fluid in the reservoir, as this indicates air is still present or being drawn out of he fluid as a result of cavitation.

3. Inspect Valves and Flow Control Settings

Examine all directional, pressure, and flow control valves. Look for signs of damage, contamination, or misalignment. Ensure that hydraulic valve settings align with operational specifications. Use a flow meter to verify that flow rates are stable and consistent throughout the system.

4. Examine Cylinders and Actuators

Inspect hydraulic cylinders for any signs of leakage, bent rods, or damaged seals. Test them under load to identify inconsistent or jerky motion. If a cylinder behaves erratically even when the rest of the system is functioning well, it may need to be rebuilt or replaced. Check the actuator alignment, as misalignment can also cause uneven movement.

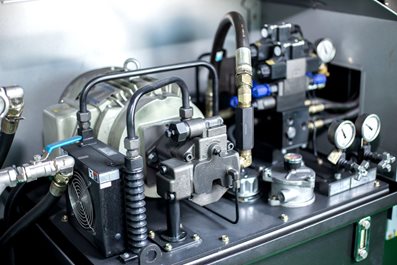

5. Test System Pressure

Connect a pressure gauge to key points in the hydraulic system to verify whether the correct operating pressure is being achieved and maintained. If pressure is inconsistent or lower than expected, inspect the pump, relief valve, and filters. In some cases, a worn or damaged pump will need replacement to restore full performance.

6. Review Operating Temperatures

High operating temperatures can damage hydraulic fluid and components reducing system performance, leading to jerky motion. Monitor system temperatures with a thermal gun or built-in sensors. Overheating could point to problems such as overloading, blocked coolers, or inadequate ventilation. Address heat-related issues to maintain consistent hydraulic action.
