Hydraulic Pump Cavitation: The Hidden Threat to System Performance

Hydraulic pump cavitation is a silent problem that can quickly turn into an expensive failure. This type of hydraulic cavitation happens when vapour bubbles form inside a pump and collapse with force, damaging components and reducing efficiency.

Because the early warning signs are subtle, many operators overlook the issue until their system suffers major wear or complete breakdown. Knowing how to spot, prevent, and address cavitation protects both performance and budgets.

What Is Hydraulic Pump Cavitation?

Cavitation occurs when the pressure in a hydraulic system drops below the fluid’s vapour pressure, causing tiny vapour bubbles to form. As these bubbles move into higher-pressure areas of the pump, they implode, sending shock waves through the system. This is the essence of cavitation in a hydraulic pump.

Two main types can occur: suction cavitation, which happens when a vacuum (negative inlet pressure) occurs at the pump’s inlet, and discharge cavitation, which develops when fluid is being drawn out of the pump quicker than the pump can pump the fluid, in other words that system is demanding a higher flow than the pump can produce. A cavitating pump will gradually lose efficiency and suffer internal damage if left unchecked.

Causes of Cavitation in Hydraulic Systems

Several factors contribute to cavitation:

• Low inlet pressure caused by clogged filters, collapsed hoses, or restrictions in the suction line
• High fluid temperature, which lowers viscosity and makes vapour bubble formation more likely
• Pump design or installation issues, including improper sizing, poor alignment, or suction lines that are too long
• Fluid contamination from air leaks, debris, or excessive aeration

These are the most common causes of cavitation in hydraulic systems, and understanding them is the first step to prevention.

Signs and Symptoms of Hydraulic Cavitation

Cavitation often reveals itself through subtle clues:

• A sound like gravel or marbles rattling inside the pump
• Excess vibration or pulsation in the system
• Sudden drops in pressure or erratic flow rates
• Premature wear on seals, bearings, or impeller surfaces
• Catching these signs early can save thousands of pounds in repair costs

Hydraulic Pump Cavitation’s Effects on System Performance

Unchecked hydraulic pump cavitation can lead to:

• Erosion of impeller and housing surfaces.
• Loss of pumping efficiency, forcing motors to work harder and consume more energy
• Excess heat, which accelerates fluid breakdown and damages seals
• Long-term equipment failure that results in costly downtime

The physical damage caused by collapsing vapour bubbles is not cosmetic—it directly shortens the life of critical components.

Diagnosing Hydraulic Cavitation

Confirming cavitation requires a combination of observation and measurement. Visual inspection may reveal pitting or erosion inside the pump. Monitoring noise levels and vibration can highlight abnormal patterns. Checking inlet pressure and fluid condition can also expose problems before severe damage occurs.

Preventing Hydraulic Cavitation

Prevention is far less costly than repair. Key strategies include:

• Maintain proper suction conditions. Keep fluid levels adequate, clean filters regularly, and ensure suction lines are free of restrictions.
• Monitor fluid temperature and viscosity. Operate within the manufacturer’s recommended range to reduce vapour formation.
• Size and install pumps correctly. Follow specifications for line lengths, bends, and pump capacity.
• Schedule regular maintenance. Early detection of leaks or blockages can stop cavitation before it starts.

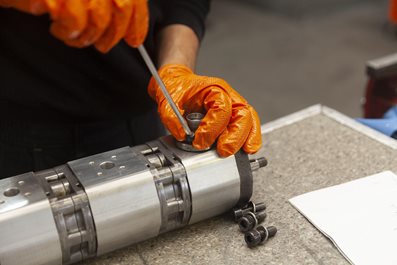

Hydraulic Cavitation Repair and Mitigation

If cavitation has already caused damage, address the underlying cause immediately. Replace or repair clogged filters, worn seals, or leaking lines. Damaged gears and bearings may need replacement. In cases of poor design or chronic issues, system upgrades or a different pump configuration might be required.

Keep Your Hydraulic System Flowing With White House Products

Hydraulic pump cavitation may begin quietly, but its impact on system performance is anything but subtle. Regular inspections, correct pump sizing, and vigilant maintenance help you stay ahead of this costly problem.

At White House Products, we supply an extensive range of hydraulic pumps, motors, and replacement parts designed to keep your equipment performing at its best. Our expert team can help you select the right components and provide guidance to prevent issues such as cavitation before they start.

Protect your machinery and maintain peak efficiency by sourcing your hydraulic solutions from White House Products—your trusted partner for dependable performance across the UK and beyond.
