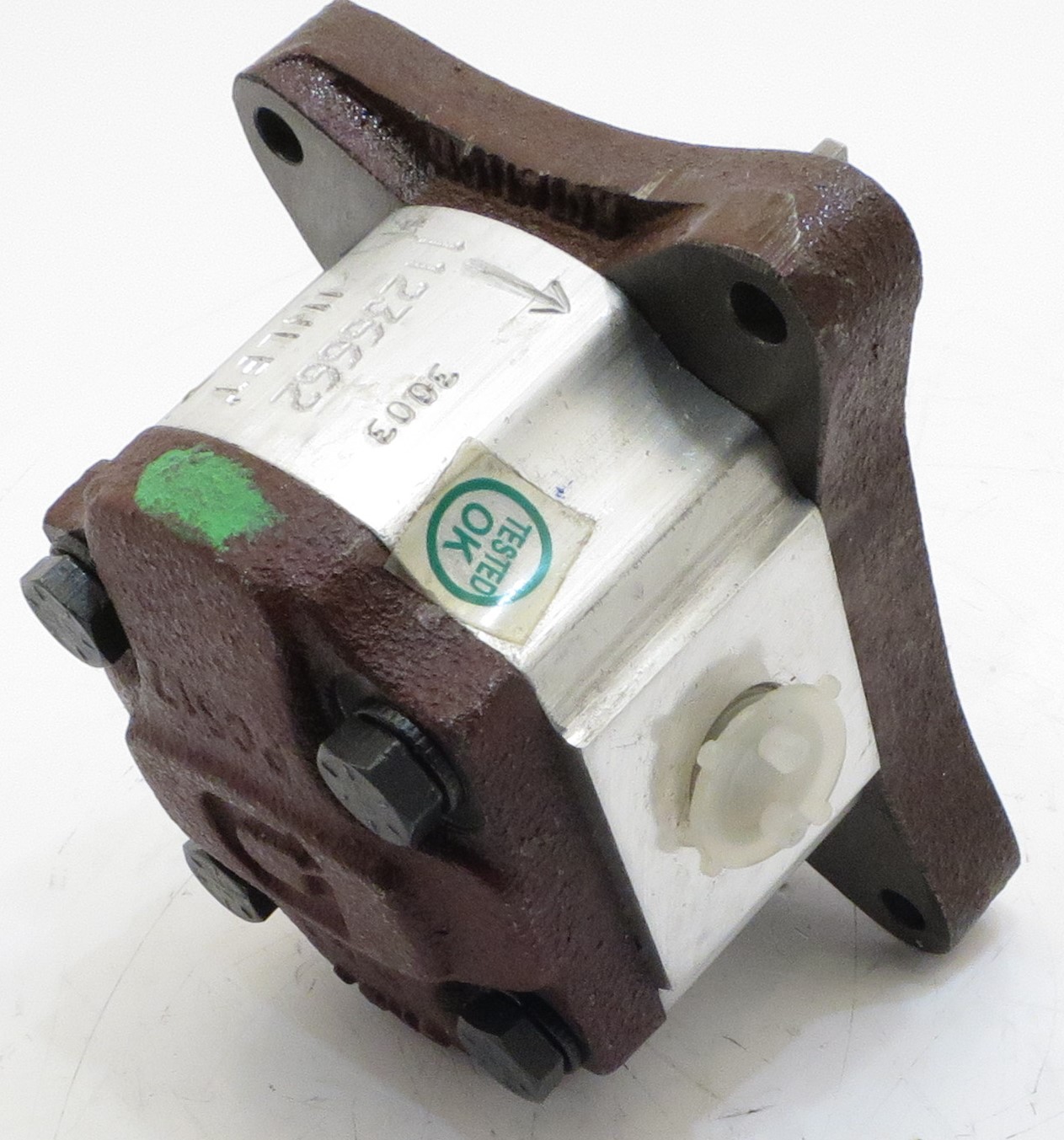

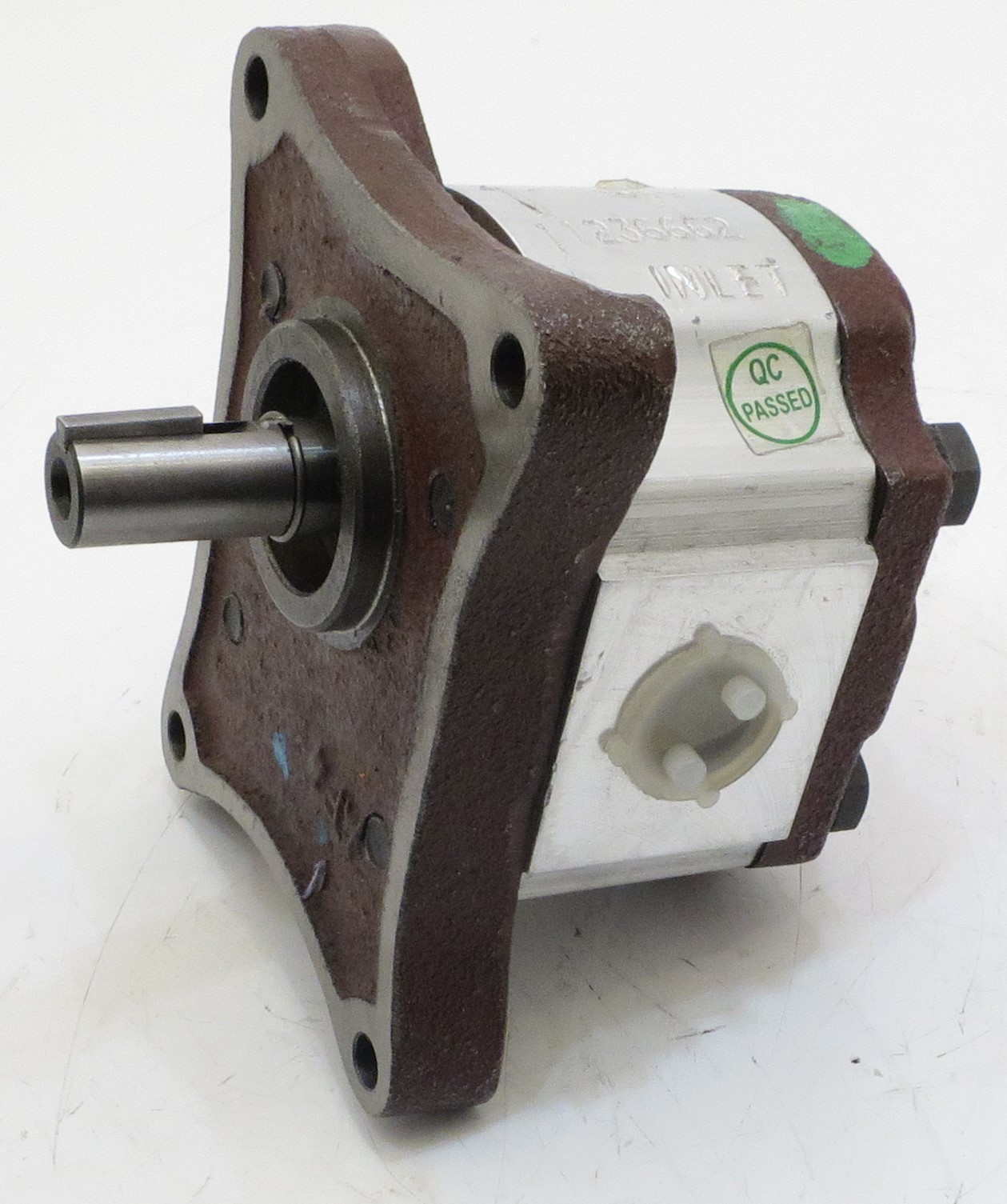

0PL 1.22CC/REV HYDRAULIC GEAR PUMP
0 PL Group 1 Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Anti-Clockwise Rotation.Displacement: 1.22cc/ rev ( 1.22 Litres at 1000 rpm).SAE B 13.45 mm parallel shaft with 1/8” wide square key, 8.2mm flange width, 33.9mm standout from the face of flange and end of shaft threaded no. 10-32 UNF x 7.6 minimum full thread .4 bolt mounting flange 71.42mm x 96.19mm with a pilot 36.47mm diameter x 4.6mm high.BSP, 2 ports (Low-Pressure port and High-Pressure ports 3/8” BSP = 11.4 minimum full thread) (Low-Pressure port and High-Pressure ports ½” BSP = 14 minimum full thread) .Modular front/ Intermediate section.Nitrile Shaft Seal
Weight (kg) : 2.04
Free Stock: 01
On Order : 10
