3PL 116.85CC/REV

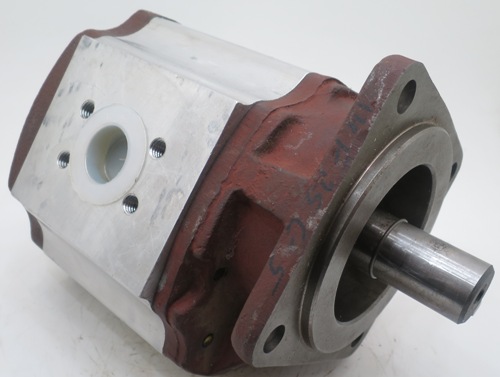

HYDRAULIC GEAR PUMPMust be a Front Section type.3 PL Dowty/Ultra Pattern Gear Pumps.Anti-Clockwise Rotation.Displacement: 116.85cc/ rev ( 116.85 Litres at 1000 rpm).SAE C 1 ¼” 31.75mm parallel shaft with 7.98mm wide square key, 56.2mm standout from the face of flange and 3/8 – 24 UNF x 12.7 minimum thread.SAE C 4 Bolt mounting flange 114.5mm x 114.5mm with a pilot 126.95mm diameter x 6.4mm high.SAE split flange with 4 tapped holes in the shape of a rectangle. Inlet: 1 ½” SAE 35.71mm x 69.85mm, 4 holes ½”-13UNC x 22.9 minimum thread, around a centre oval hole (Diameter 1: 38.1mm, Diameter 2: 33.3mm). Outlet: 1” SAE 26.19mm x 52.37mm, 4 holes 3/8”-16UNCx22.9 minimum thread, around a central hole (Diameter: 25.4mm).Modular front/ Intermediate section.Double Nitrile Shaft Seal
Weight (kg) : 11.5
Available Stock: 01
On Order : 0
