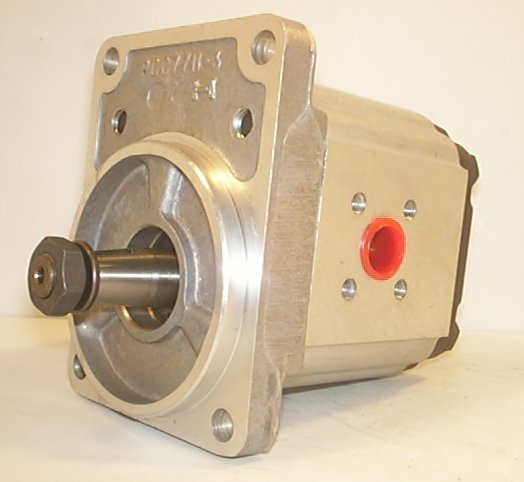

1PL 14.33CC/RV HYDRAULIC GEAR PUMP
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

1PL044AKBBAN

1PL 14.33CC/RV HYDRAULIC GEAR PUMP

1 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Anti-Clockwise Rotation.Displacement: 044cc/ rev ( 044 Litres at 1000 rpm).Standard Group 2 1:5 taper shaft with M12 x 1.25 male thread and 3mm wide woodruff key 40.5mm standout from the face of flange.Din / Bosch 4 bolt mounting flange 72mm x 100mm with a pilot 80mm diameter x 7.2mm high, 17.5mm flange width.Bosch Flange ports with 4 tapped holes in the shape of a square Inlet: 19mm PCD tapped M6 x 10 x 13.5 minimum thread, equispaced on 40 PCD around a central hole Outlet: 15 PCD tapped M6 x 10 x 13.5 minimum thread, equispaced on 35 PCD around a central hole.Modular front/ Intermediate section.Nitrile Shaft Seal

Weight (kg) : 4.6

Out of Stock :

On Order : 0
