SNP/C25LSSTB

SNP 2 C25L SC06.F_111.20.943.00

SNP2NN/025RN06SAP1F6F5NNNN/NNNNN

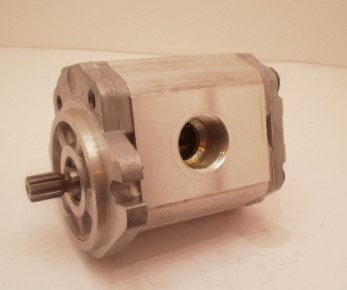

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 25.2cc/ rev (25.2 Litres at 1000 rpm).5/8” (15.875mm) SAE A 9 tooth spline shaft, Nominal diameter: 5/8” [15.875mm], actual diameter: 15.456mm J498-9T 16/32 DP Flat root side fit 31.7mm stand out from face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.BSP Thread port, Inlet: 1 BSP Outlet: 3/4 BSP.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 3.2

Available Stock: 04

On Order : 0
