SNP/C12LSSTB - SNP2 / 12 D SC06.F_111.20.A70.00P

+44 (0) 1475 742500 | sales@whp.co.uk |

Local time: 26/06/2025, 16:30:53

Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP/C12LSSTB

SNP2 / 12 D SC06.F_111.20.A70.00P

SNP2NN/012RN06SAP1F5F4NNNN/NNNNN

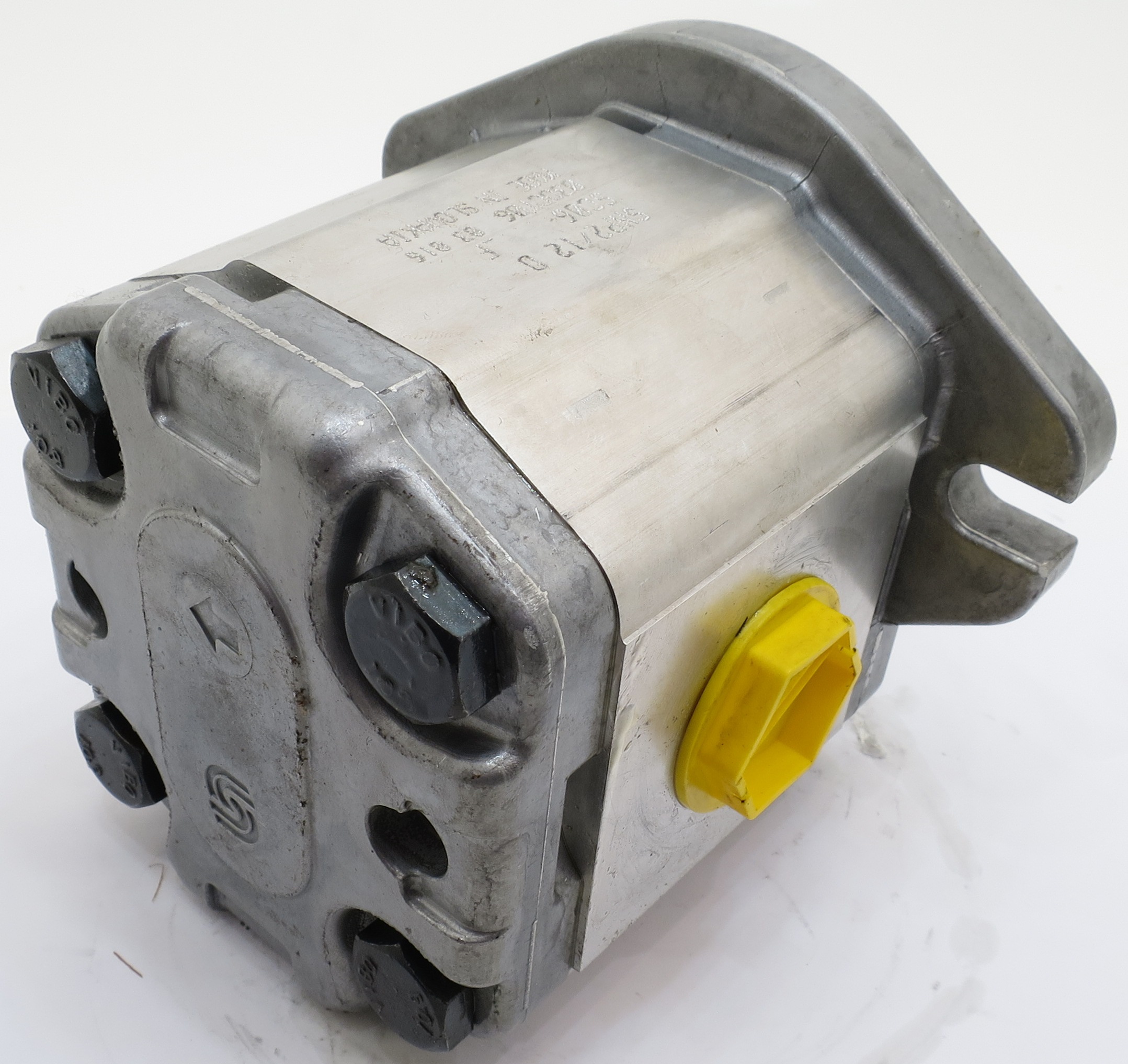

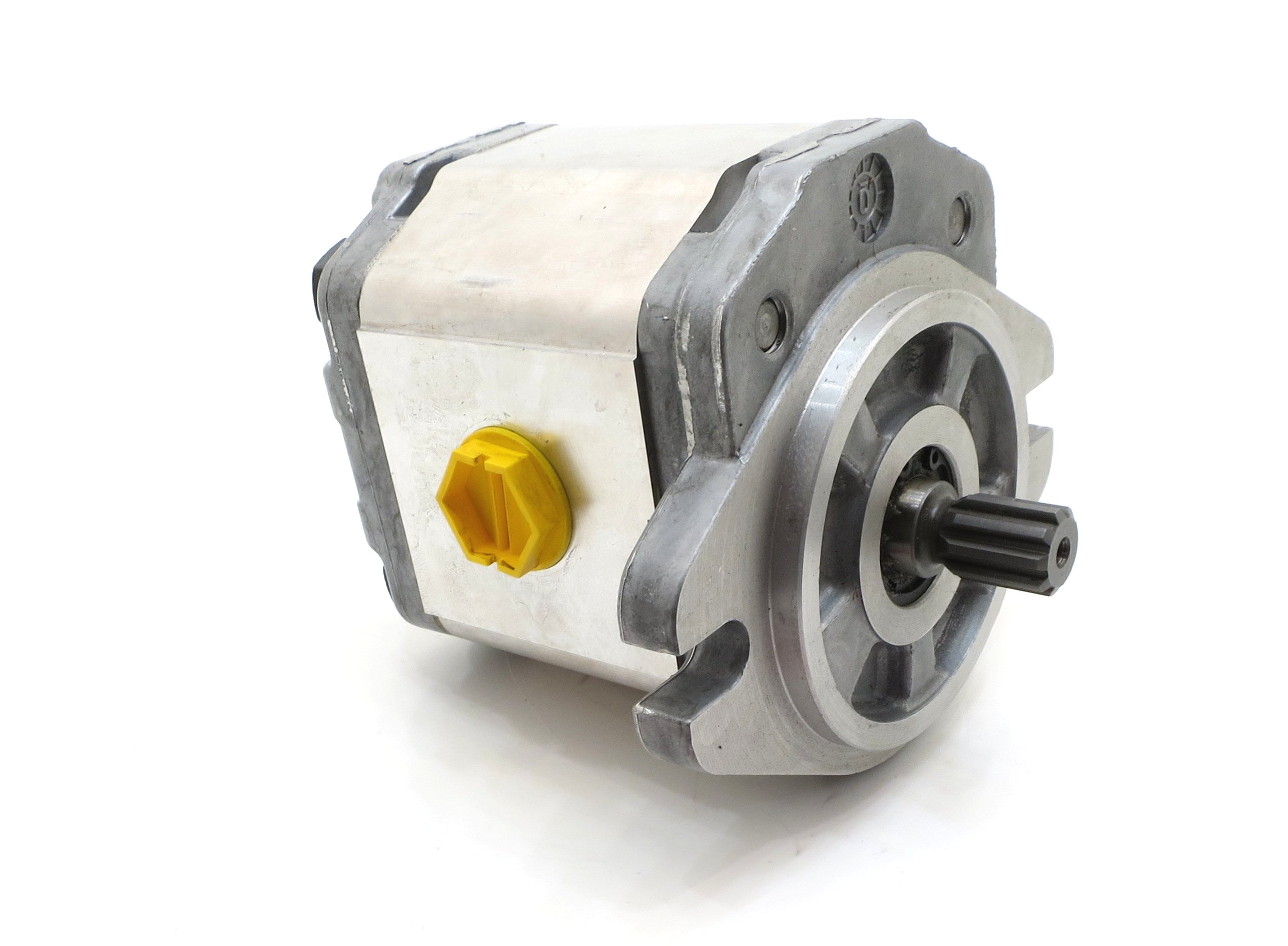

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 12cc/ rev (12 Litres at 1000 rpm).5/8” (15.875mm) SAE A 9 tooth spline shaft, Nominal diameter: 5/8” [15.875mm], actual diameter: 15.456mm J498-9T 16/32 DP Flat root side fit 31.7mm stand out from face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.X.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 2.75

Available Stock: 13

On Order : 0
