SNP/A22LSSBA

SNP2 22 S SC46.G_211.20.219.00

SNW2NN/022LN06SMNNB7B5YYNN/NNNNN

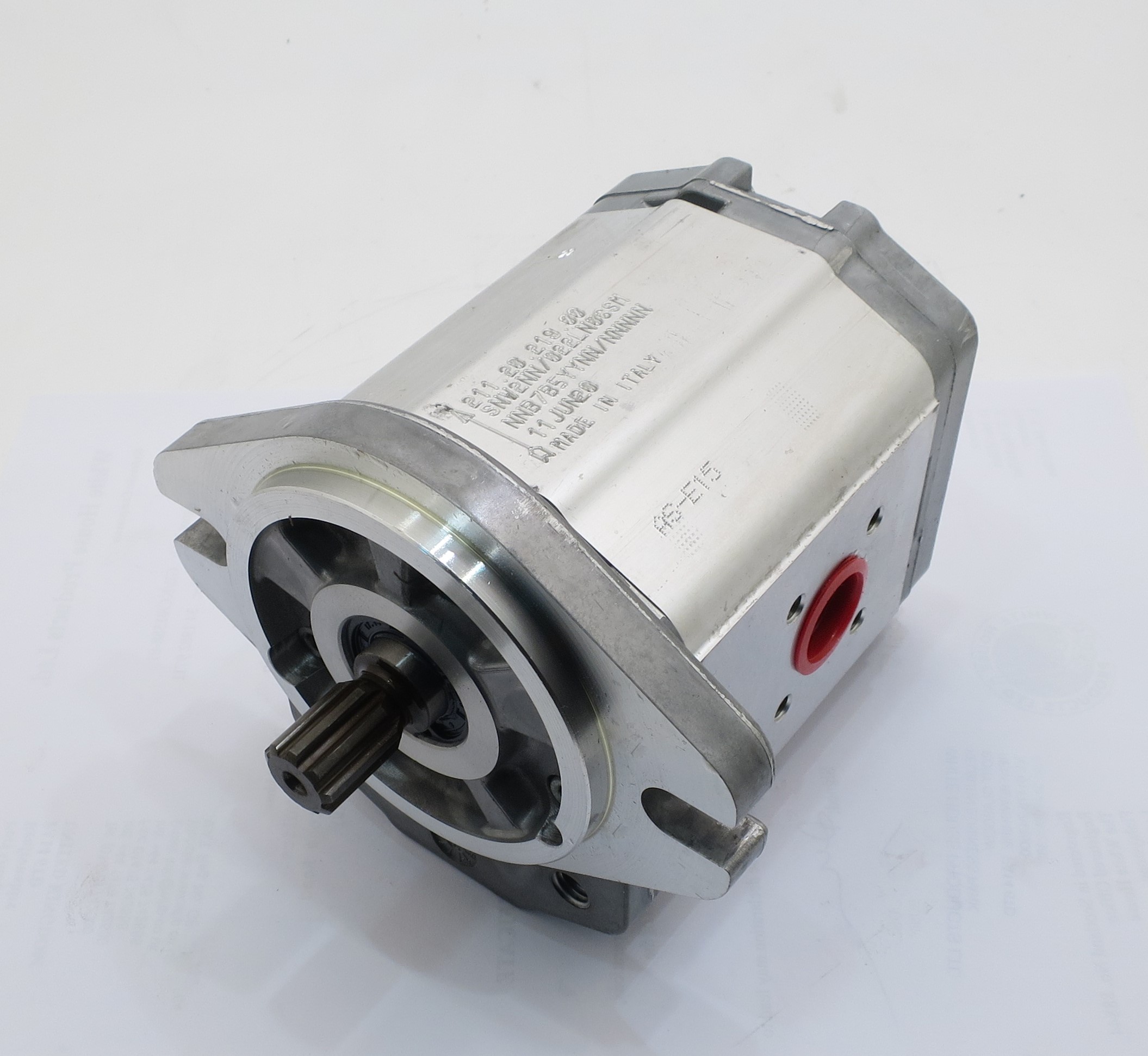

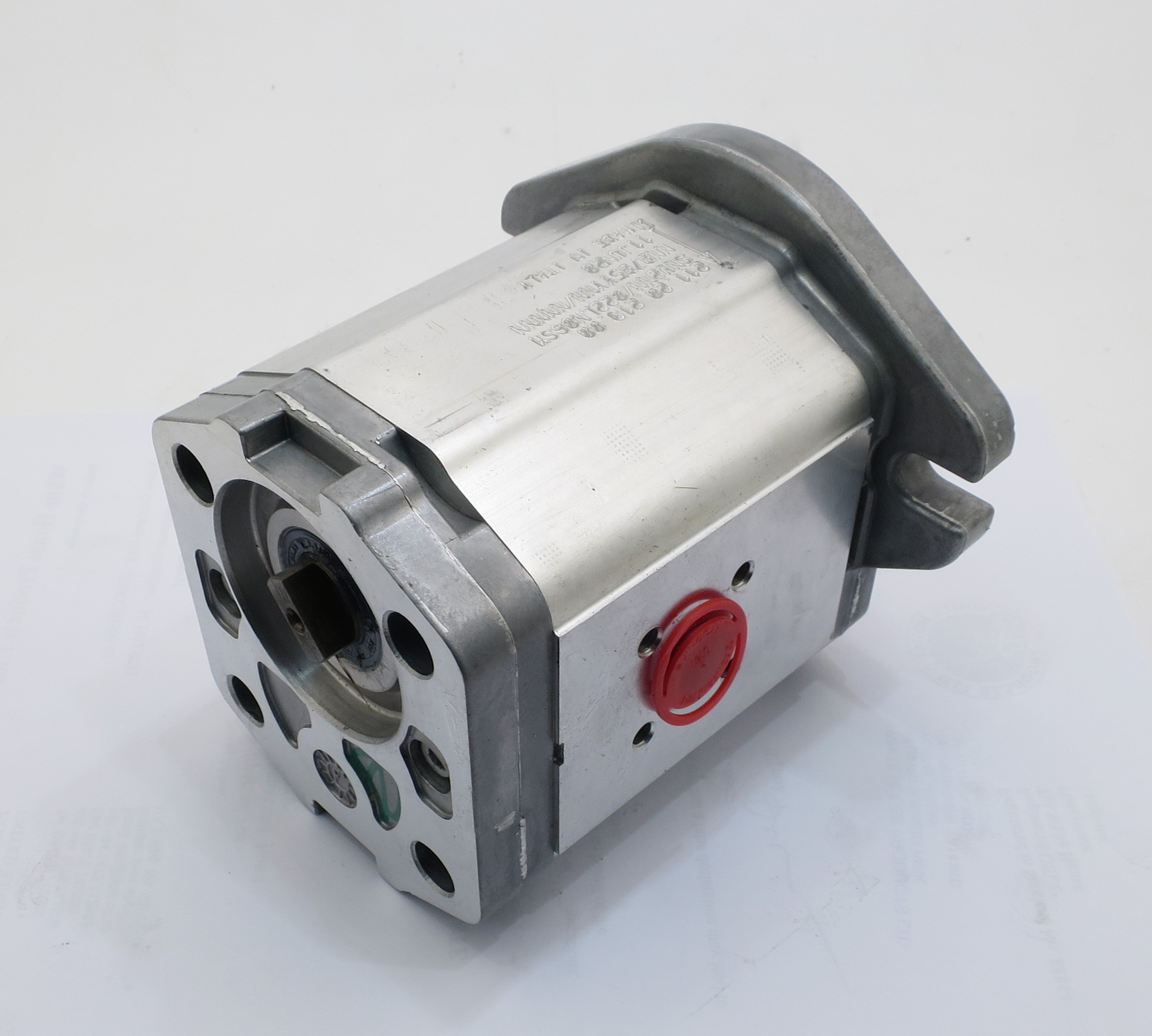

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 22.8cc/ rev (22.8 Litres at 1000 rpm).5/8” (15.875mm) SAE A 9 tooth spline shaft, Nominal diameter: 5/8” [15.875mm], actual diameter: 15.456mm J498-9T 16/32 DP Flat root side fit 31.7mm stand out from face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.Flange ports with 4 tapped holes in the shape of a square Inlet: 40[1.575] PCD tapped M6 around a central hole Outlet: 35[1.378] PCD tapped M6 around a central hole .Front section cover to take a through drive.Nitrile Shaft Seals

Weight (kg) : 2.9

Available Stock: 02

On Order : 0
