SNP2 A11L PSOB

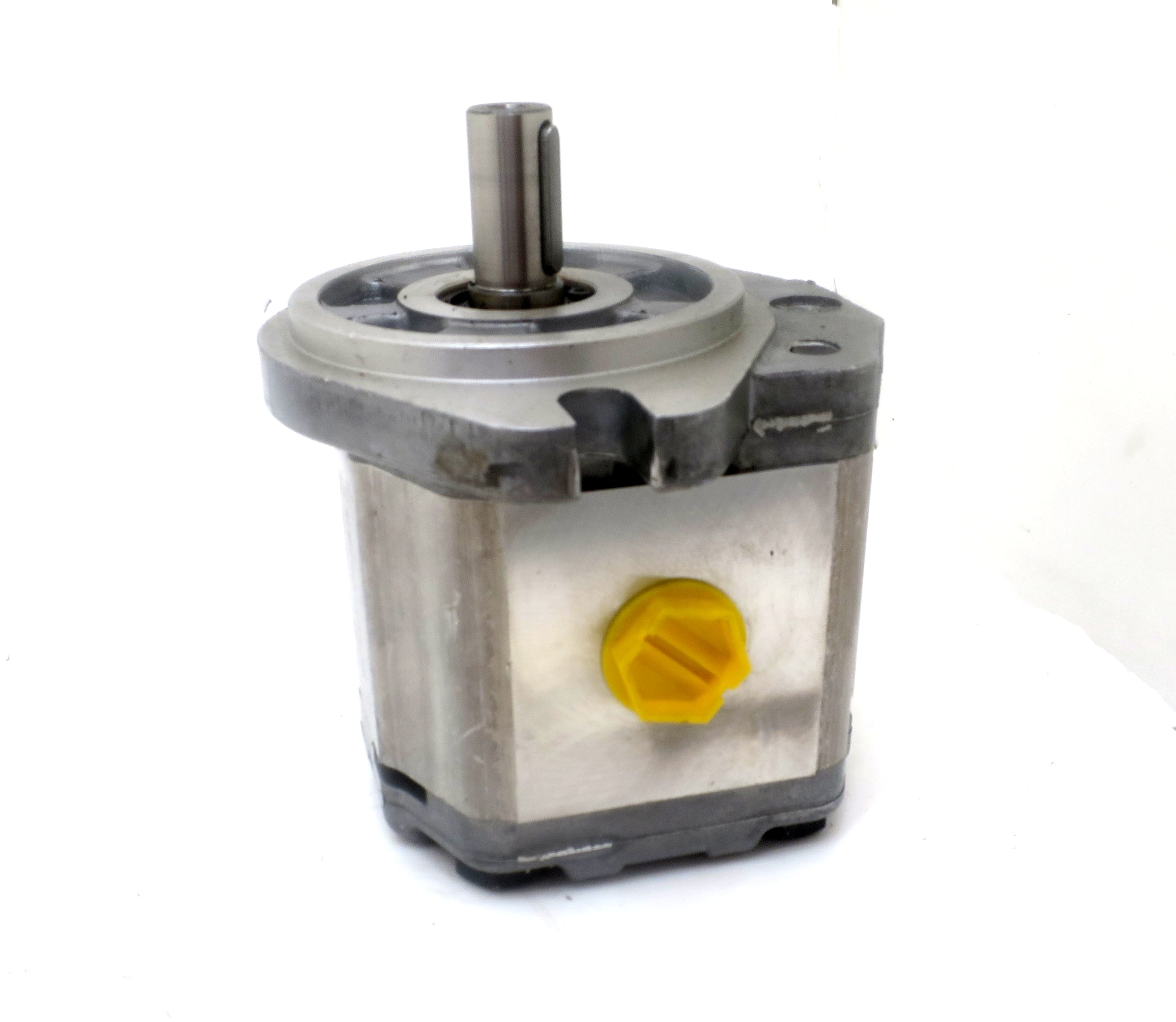

Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP2 A11L PSOB
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP/A11LPSOB

SNP2 A11L PSOB

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 10.8cc/ rev (10.8 Litres at 1000 rpm).15mm parallel shaft with 4mm wide square key 36.5mm standout from the face of flange and M6 female tapping in the end of the shaft.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 2.7

Available Stock: 01

On Order : 0
