SNP2 A22L KXBB

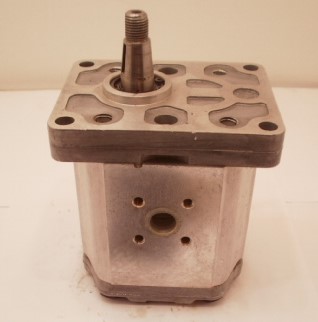

HYDRAULIC GEAR PUMPSNP2 - Group 2 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 22.8cc/ rev (22.8 Litres at 1000 rpm).Standard Group 2 1:5 taper shaft with M12 x 1.25 male thread and 3mm wide woodruff key 40.5mm standout from the face of flange.Standard European 4 bolt mounting flange 71.5mm x 96.2mm with a pilot 36.5mm diameter x 5mm high.Flange ports with 4 tapped holes in the shape of a square Inlet: 40[1.575] PCD tapped M6 around a central hole Outlet: 35[1.378] PCD tapped M6 around a central hole .Standard blank rear cover.Nitrile Shaft Seals
Weight (kg) : 3.1
Out of Stock :
On Order : 0
