SNP2 C11L TSOB_111.20.839.00

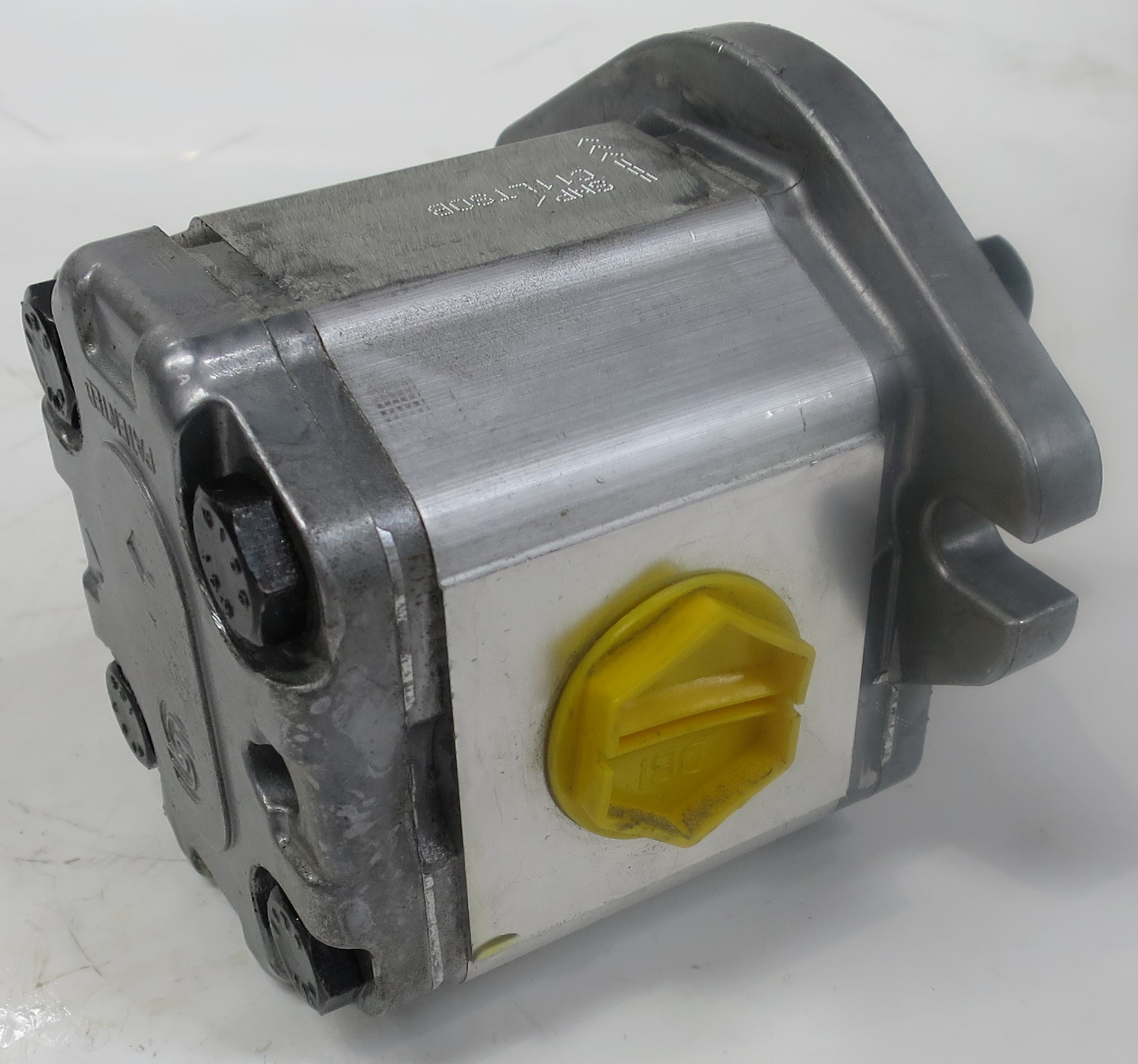

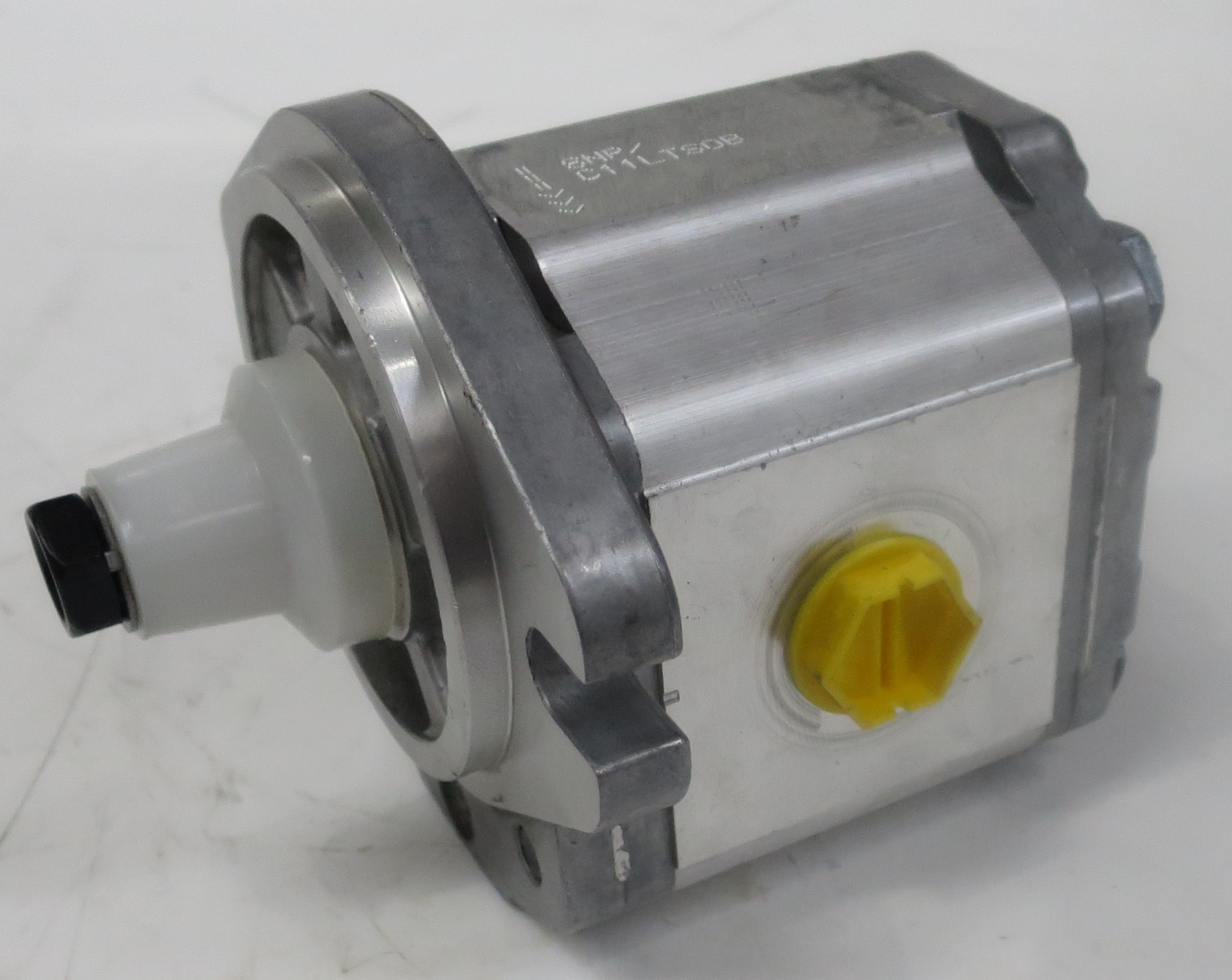

SNP2NN/011RN06BAP1E6E5NNNN/NNNNNHYDRAULIC GEAR PUMPSNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 10.8cc/ rev (10.8 Litres at 1000 rpm).Standard Group 2 1:8 taper shaft with M12 x 1.25 male thread and 4mm wide woodruff key (Stepped key available if 3.2mm key required (SNP2A10)) 40.5mm standout from the face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals
Weight (kg) : 2.5
Out of Stock :
On Order : 5
