White House Products Ltd - Hydraulic Pump Supplier
SNP2 C14L LBOB
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP2 C14L LBOB
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP/C14LLBOB

SNP2 C14L LBOB

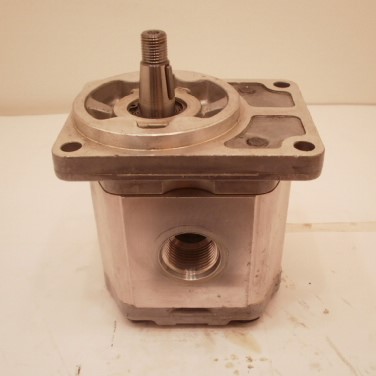

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 14.4cc/ rev (14.4 Litres at 1000 rpm).5/8" (15.875mm) SAE A Parallel shaft with 5/32" (3.995mm) wide key 31.7mm standout from the face of flange and M6 female tapping in the end of the shaft.Din / Bosch 4 bolt mounting flange 72mm x 100mm with a pilot 80mm diameter x 7.2mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 2.8

Out of Stock :

On Order : 0
