SNP/C14LZXOB

SNP2 C14L SC01.E_111.20.204.00

SNP2NN/014RN01DAP1E6E5NNNN/NNNNN

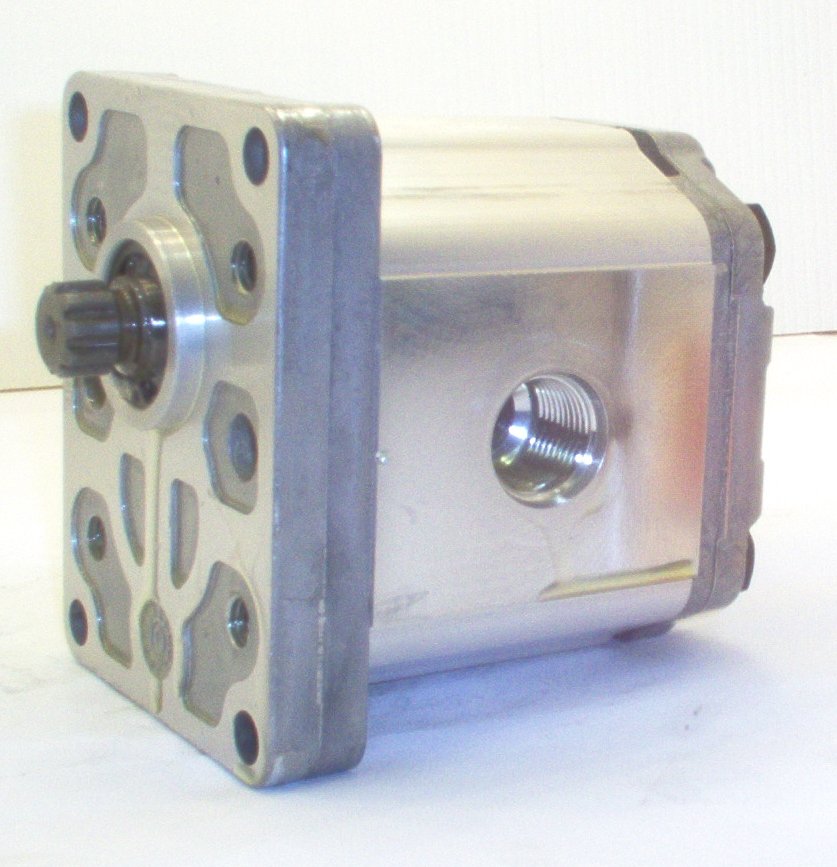

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 14.4cc/ rev (14.4 Litres at 1000 rpm).Short Din 5482 B17 x 14 9 tooth splined shaft, actual diameter: 16.5mm, nominal diameter: 17mm, standout 19.5mm from the face of flange.Standard European 4 bolt mounting flange 71.5mm x 96.2mm with a pilot 36.5mm diameter x 5mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 2.69

Available Stock: 02

On Order : 0
