White House Products Ltd - Hydraulic Pump Supplier
SNP2 C17L C041-F_211.20.205.00
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP2 C17L C041-F_211.20.205.00
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP/C17LTXTA

SNP2 C17L C041-F_211.20.205.00

SNW2NN/017RN01BQNNF5F4NNNN/NNNNN

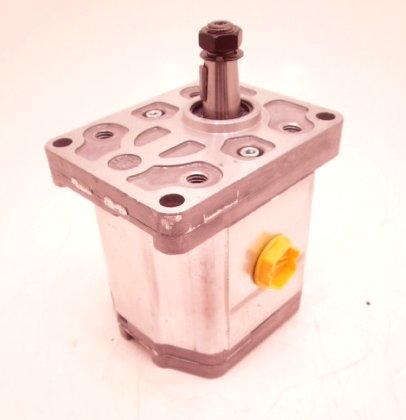

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 16.8cc/ rev (16.8 Litres at 1000 rpm).Standard Group 2 1:8 taper shaft with M12 x 1.25 male thread and 4mm wide woodruff key (Stepped key available if 3.2mm key required (SNP2A10)) 40.5mm standout from the face of flange.Standard European 4 bolt mounting flange 71.5mm x 96.2mm with a pilot 36.5mm diameter x 5mm high.BSP Thread port, Inlet: 3/4 BSP Outlet: 1/2 BSP.Front section cover to take a through drive.Nitrile Shaft Seals

Weight (kg) : 2.73

Available Stock: 03

On Order : 0
