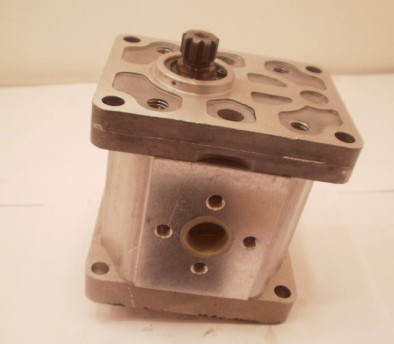

SNP2 C19L ZXSZ
HYDRAULIC GEAR PUMPSNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 19.2cc/ rev (19.2 Litres at 1000 rpm).Short Din 5482 B17 x 14 9 tooth splined shaft, actual diameter: 16.5mm, nominal diameter: 17mm, standout 19.5mm from the face of flange.Standard European 4 bolt mounting flange 71.5mm x 96.2mm with a pilot 36.5mm diameter x 5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet: 40[1.575] PCD tapped M8 around a central hole, Outlet: 30[1.181] PCD tapped M6 around a central hole.Modular front to take TFP 100/SNP1 back section.Nitrile Shaft Seals
Weight (kg) : 3
Out of Stock :
On Order : 0
