SNP2 C22L MLOB

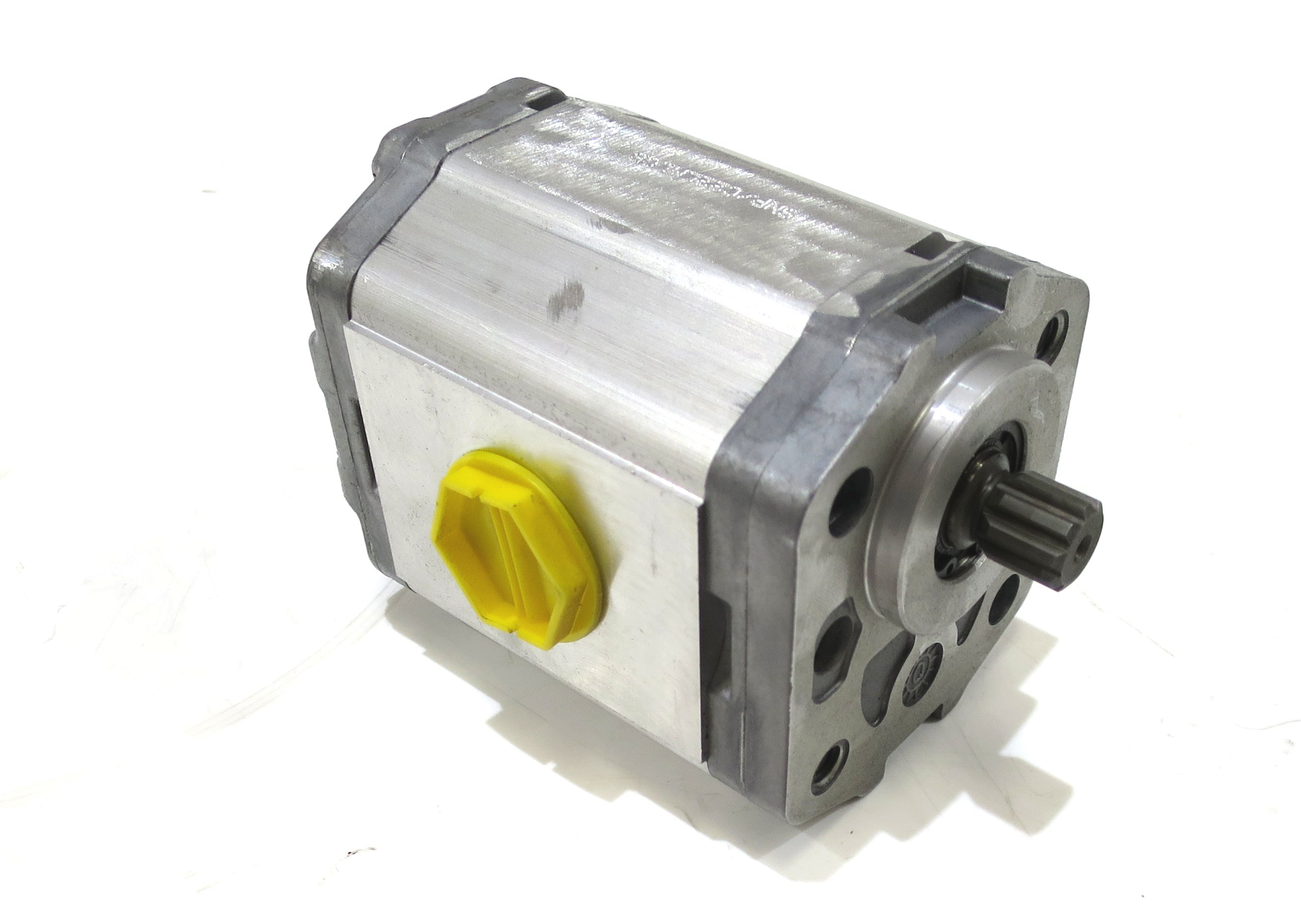

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 22.8cc/ rev (22.8 Litres at 1000 rpm).Long Din 5482 B17 x 14 9 tooth splined shaft, actual diameter: 16.5mm, nominal diameter: 17mm, standout 19.5mm from the face of flange.Deutz engine flange two through holes top left & bottom right when viewed from the shaft end 84.85mm centres with a pilot 50mm diameter x 7.2mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 3.1

Available Stock: 02

On Order : 0
