White House Products Ltd - Hydraulic Pump Supplier
SNP2 C22L TSOB
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP2 C22L TSOB
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP/C22LTSOB

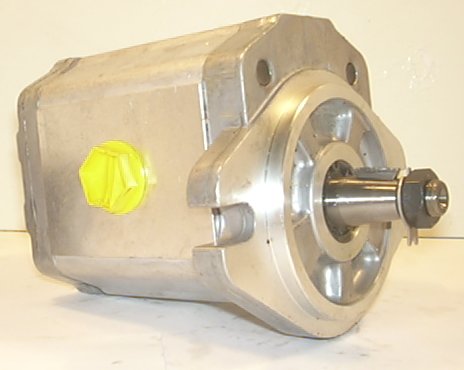

SNP2 C22L TSOB

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 22.8cc/ rev (22.8 Litres at 1000 rpm).Standard Group 2 1:8 taper shaft with M12 x 1.25 male thread and 4mm wide woodruff key (Stepped key available if 3.2mm key required (SNP2A10)) 40.5mm standout from the face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.SAE O ring (UNF) threaded ports: Inlet 1 1/16-12UNF-2B and outlet 7/8-14UNF-2B.Standard blank rear cover.Nitrile Shaft Seals

Weight (kg) : 3.2

Available Stock: 01

On Order : 0
