SNP/C25LKLBA

SNP2 C25L CO44_211.20.254.00

SNW2NN/025RN04AGNNB7B5NNNN/NNNNN

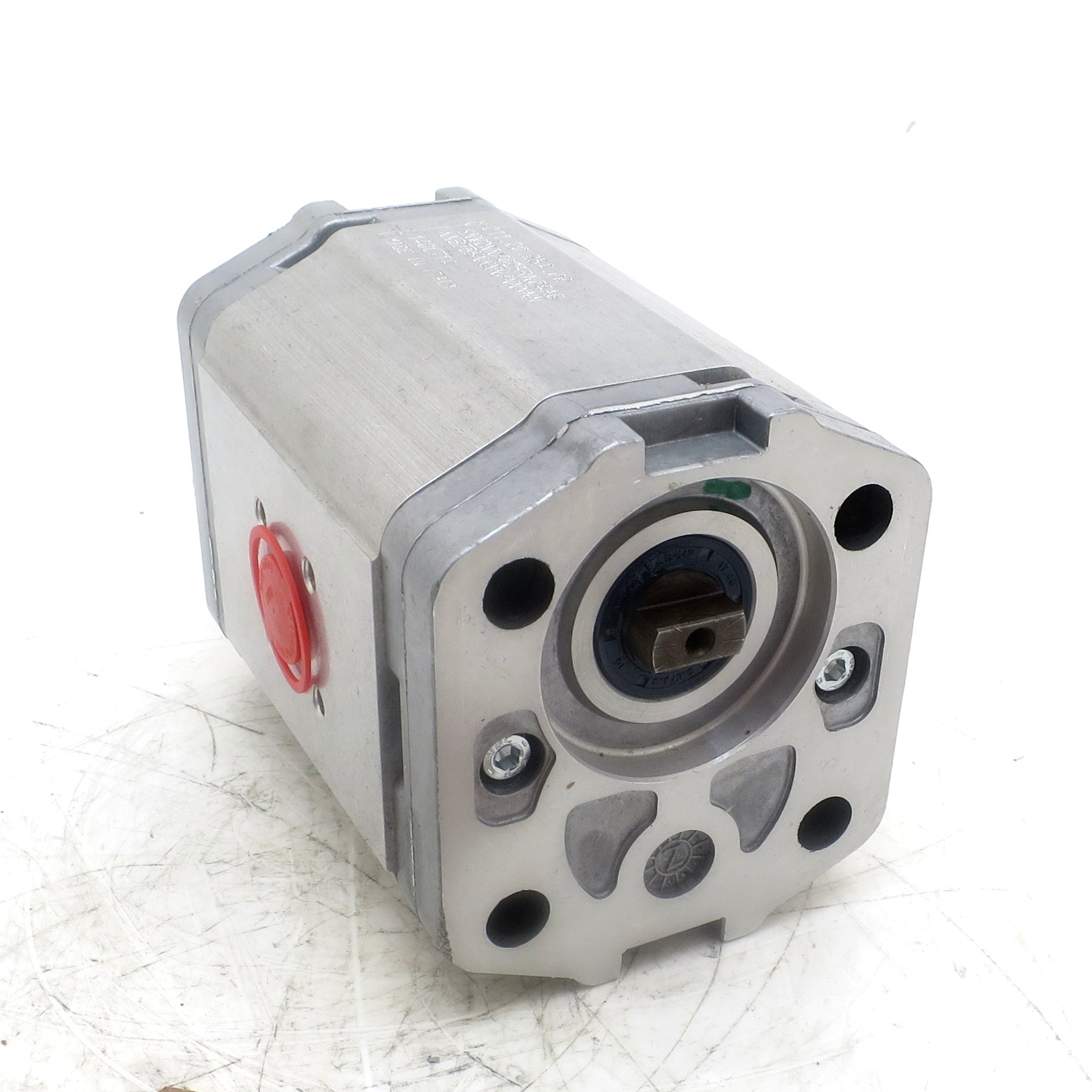

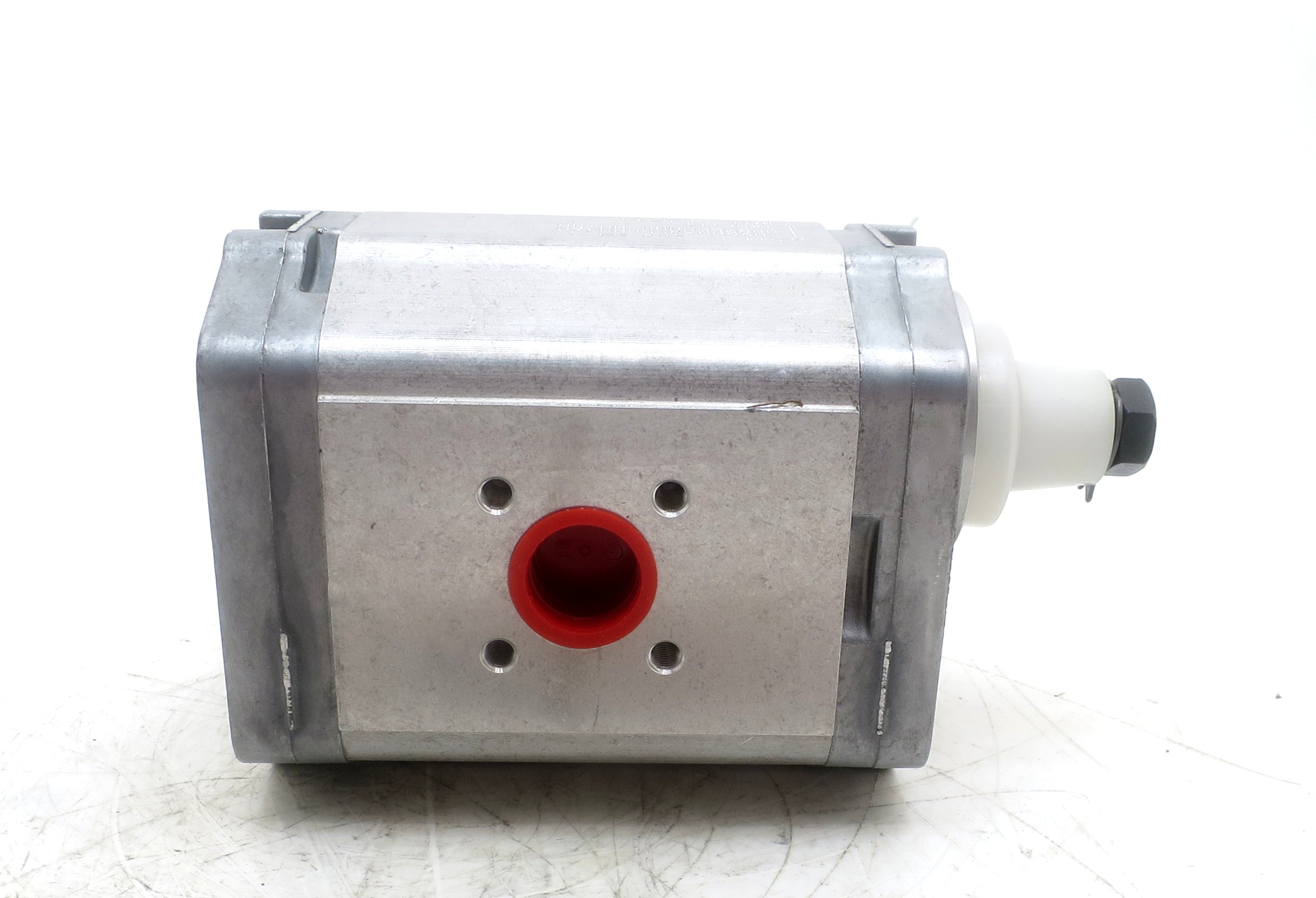

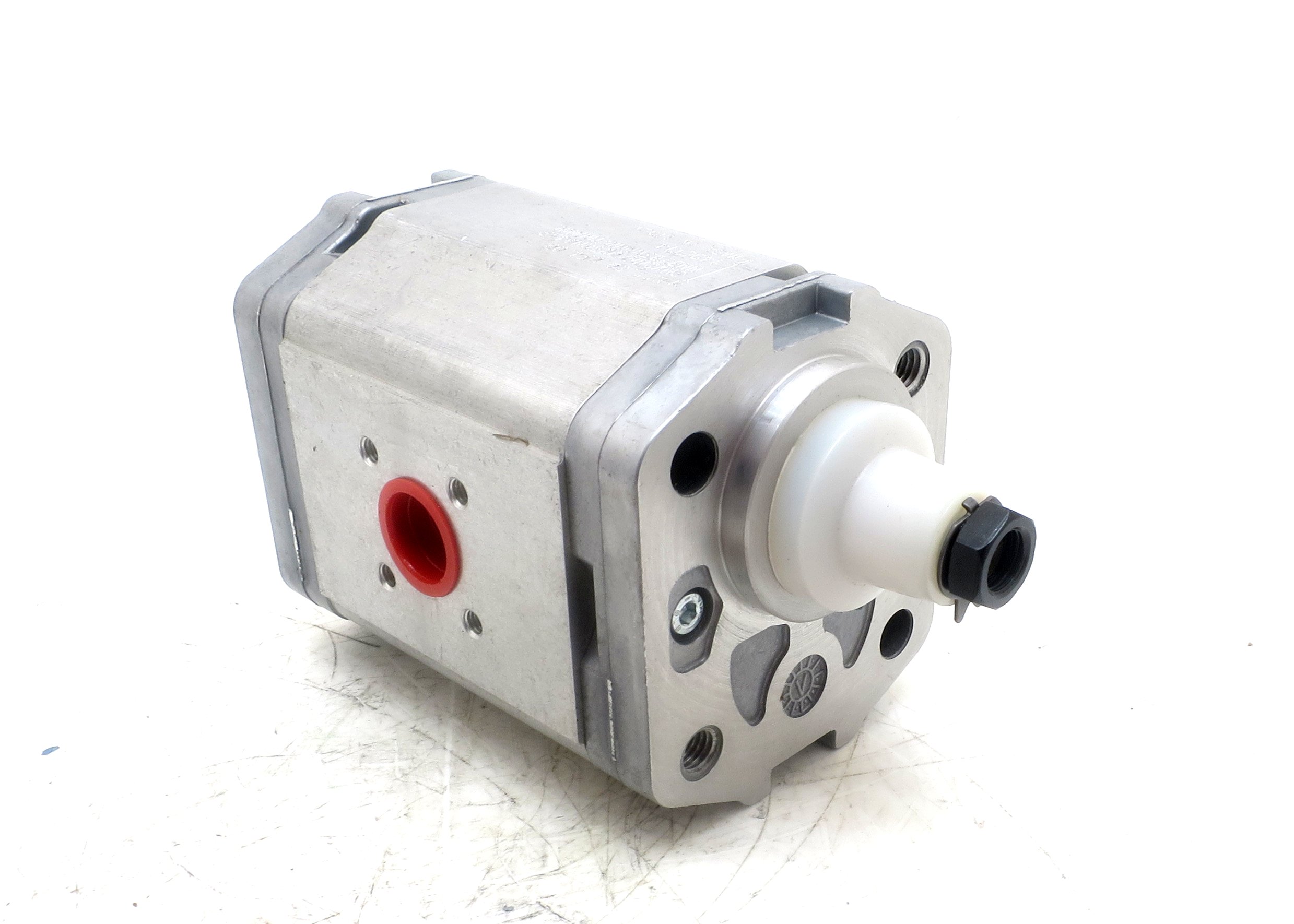

HYDRAULIC GEAR PUMP

SNP2 - Group 2 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 25.2cc/ rev (25.2 Litres at 1000 rpm).Standard Group 2 1:5 taper shaft with M12 x 1.25 male thread and 3mm wide woodruff key 40.5mm standout from the face of flange.Deutz engine flange two through holes top left & bottom right when viewed from the shaft end 84.85mm centres with a pilot 50mm diameter x 7.2mm high.Flange ports with 4 tapped holes in the shape of a square Inlet: 40[1.575] PCD tapped M6 around a central hole Outlet: 35[1.378] PCD tapped M6 around a central hole .Front section cover to take a through drive.Nitrile Shaft Seals

Weight (kg) : 2.9

Available Stock: 01

On Order : 0
