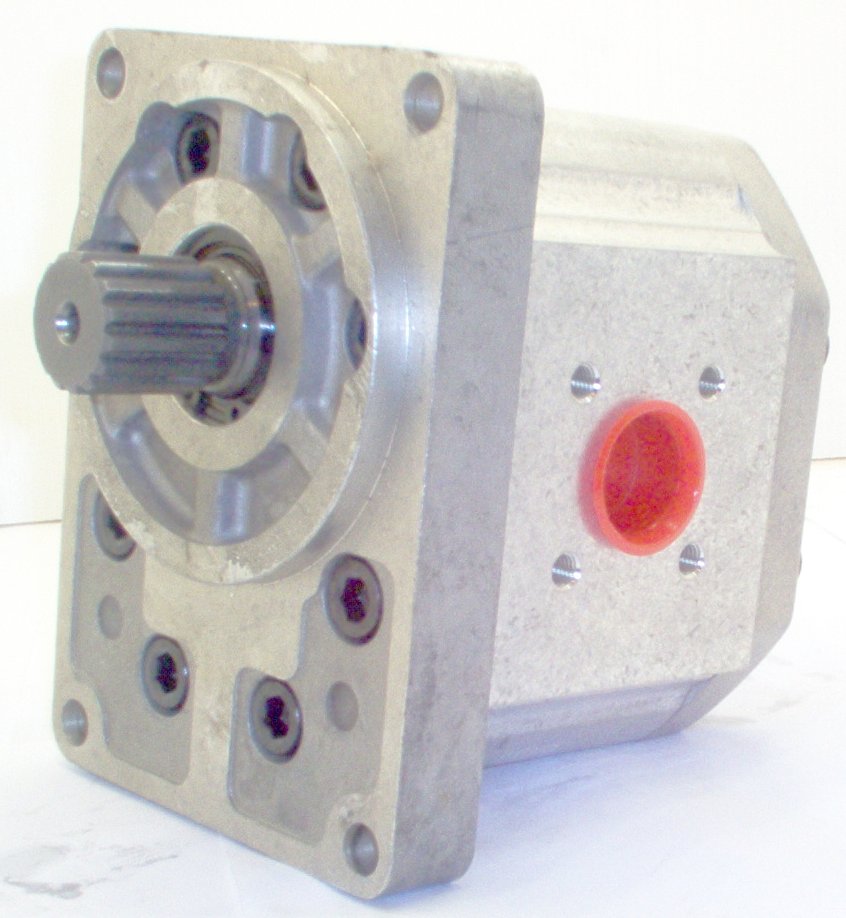

Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP3/A22LMDBB

SNP3 22S SC06_111.25.216.0A

SNP3NN/022LN06DDP1BBBANNNN/NNNNN
BOSCH STYLE
HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 22.1cc / rev (22.1 Litres at 1000 rpm).Long Din 5482 (B28 x 25 – L28) 15 tooth splined shaft, actual diameter:27.5mm, nominal diameter: 28mm, standout 40mm from the face of flange.DIN Group 3, 4 Bolt mounting flange, 102mm x 145mm, with a pilot diameter 105mm x 8mm high.Flange ports with 4 tapped holes in the shape of a square Inlet: 55[2.165], Outlet: 55[2.165] PCD tapped M8 around a central hole, Inlet:27[1.063] Outlet:18[0.709] PCD tapped M8 around a central hole.Single pump.Nitrile Shaft Seal

Weight (kg) : 6.59

Available Stock: 01

On Order : 0
