SNP3/A26LUHBB

SNP3 26 S SC11.G_211.25.059.0A

SNQ3NN/026LN11DBP1BBBANNNN/NNNNN

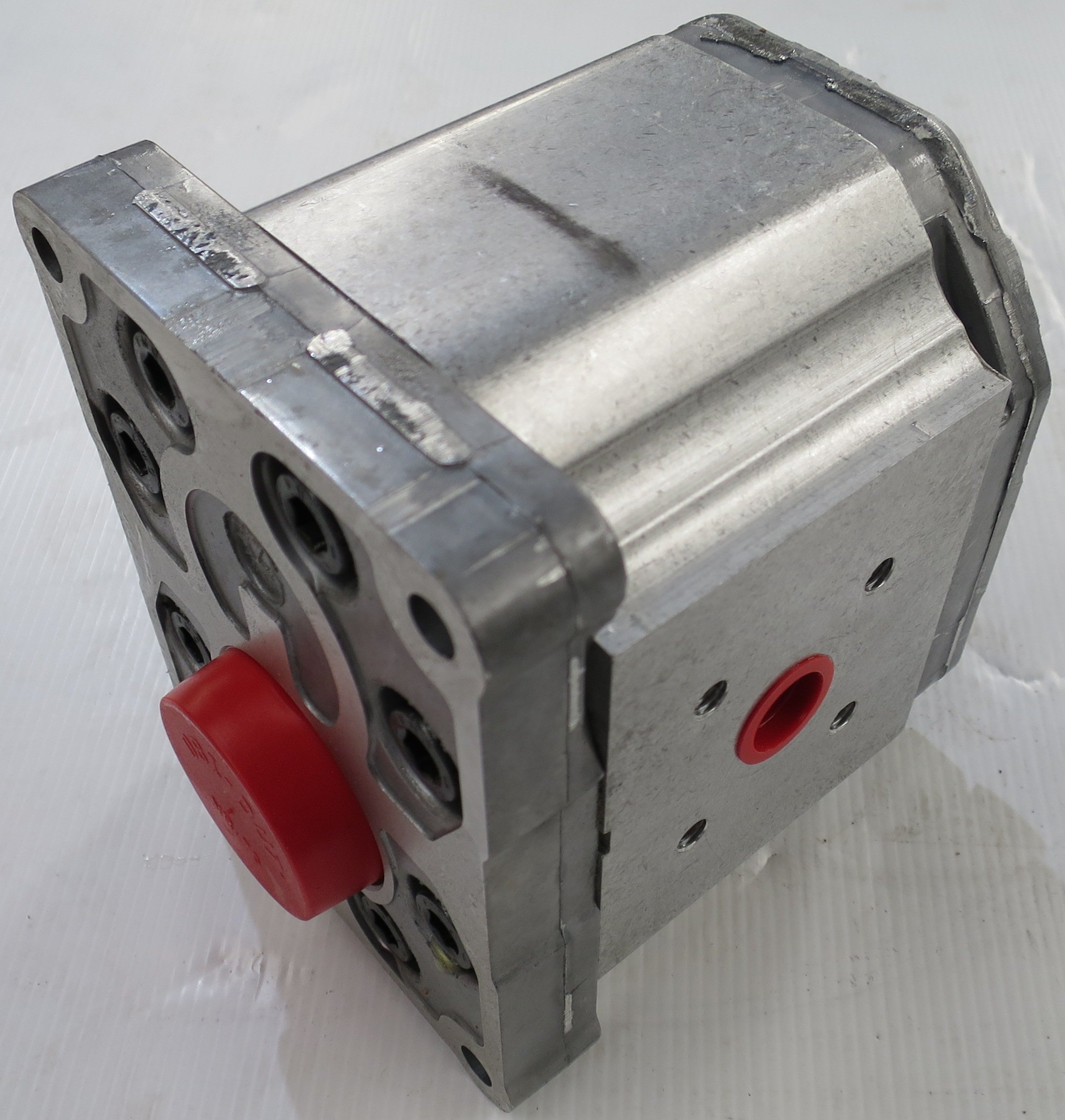

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 26.2cc / rev (26.2 Litres at 1000 rpm).SAE B 13 tooth spline shaft, Nominal Diameter: 7/8” (22.22mm), Actual Diameter: 21.806mm, J498-13T 16/32DP Flat root side fit, 0.5mm recessed from face of flange.Flange with 2 through bolts top right & bottom left when viewed from the shaft end with a pilot 52mm diameter with O ring x 7.2mm high .Flange ports with 4 tapped holes in the shape of a square Inlet: 55[2.165], Outlet: 55[2.165] PCD tapped M8 around a central hole, Inlet:27[1.063] Outlet:18[0.709] PCD tapped M8 around a central hole.Single pump.Nitrile Shaft Seal

Weight (kg) : 7.5

Available Stock: 01

On Order : 2
