SNP3/A33LUHBA

SNP3 33 S SC71.G_211.25.048.0A

SNO3NN/033LN11DMNNBBBANNNN/NNNNN

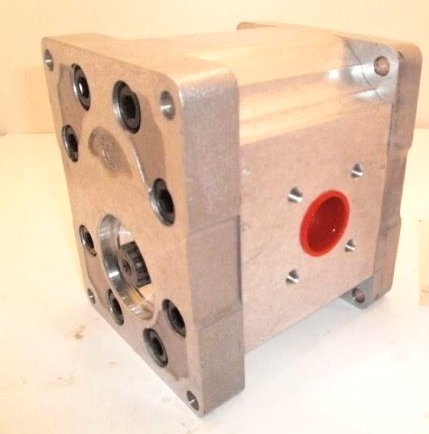

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 33.1cc / rev (33.1 Litres at 1000 rpm).SAE B 13 tooth spline shaft, Nominal Diameter: 7/8” (22.22mm), Actual Diameter: 21.806mm, J498-13T 16/32DP Flat root side fit, 0.5mm recessed from face of flange.Flange with 4 through bolts top right & bottom left when viewed from the shaft end with a pilot 52mm diameter with O ring x 7.2mm high .Flange ports with 4 tapped holes in the shape of a square Inlet: 55[2.165], Outlet: 55[2.165] PCD tapped M8 around a central hole, Inlet:27[1.063] Outlet:18[0.709] PCD tapped M8 around a central hole.Modular Front Section.Nitrile Shaft Seal

Weight (kg) : 6.4

Available Stock: 01

On Order : 0
