SNP3 38 D SC11.G_211.25.061.0C

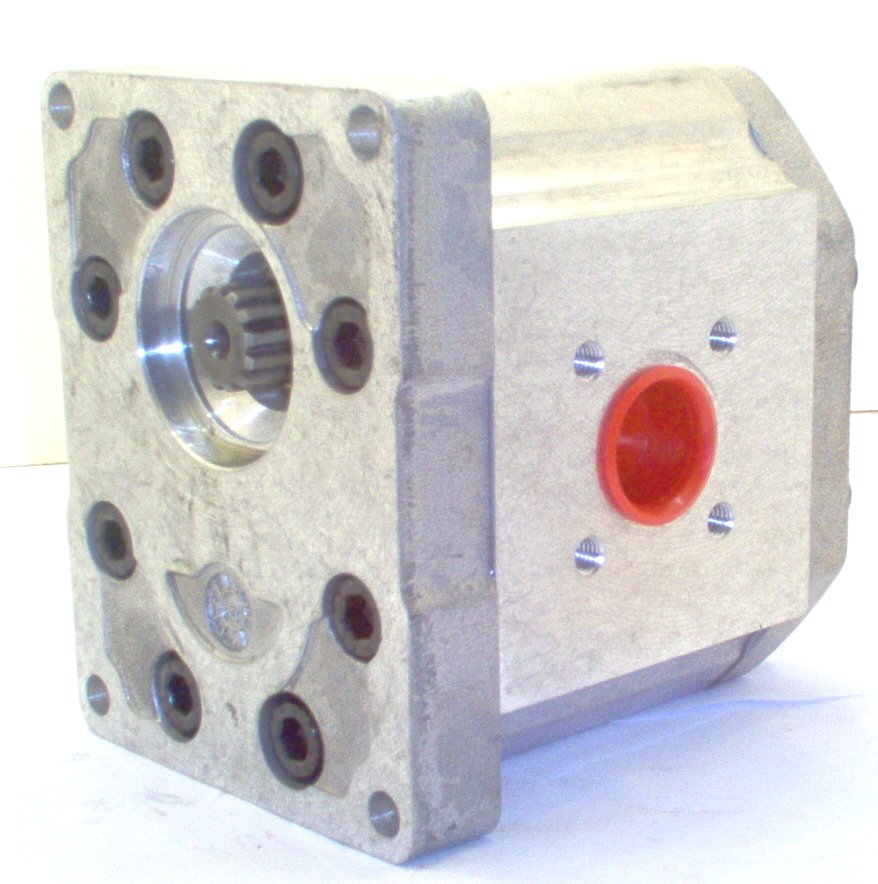

SNQ3NN/038RN11DBP1BBBANNNN/NNNNNHYDRAULIC GEAR PUMPSNP3 - Group 3 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 37.9cc / rev (37.9 Litres at 1000 rpm).SAE B 13 tooth spline shaft, Nominal Diameter: 7/8” (22.22mm), Actual Diameter: 21.806mm, J498-13T 16/32DP Flat root side fit, 0.5mm recessed from face of flange.Flange with 2 through bolts top right & bottom left when viewed from the shaft end with a pilot 52mm diameter with O ring x 7.2mm high .Flange ports with 4 tapped holes in the shape of a square Inlet: 55[2.165], Outlet: 55[2.165] PCD tapped M8 around a central hole, Inlet:27[1.063] Outlet:18[0.709] PCD tapped M8 around a central hole.Single pump.Nitrile Shaft Seal
Weight (kg) : 6.5
Available Stock: 03
On Order : 0
