SNP3 38 S SC07_111.25.014.0A

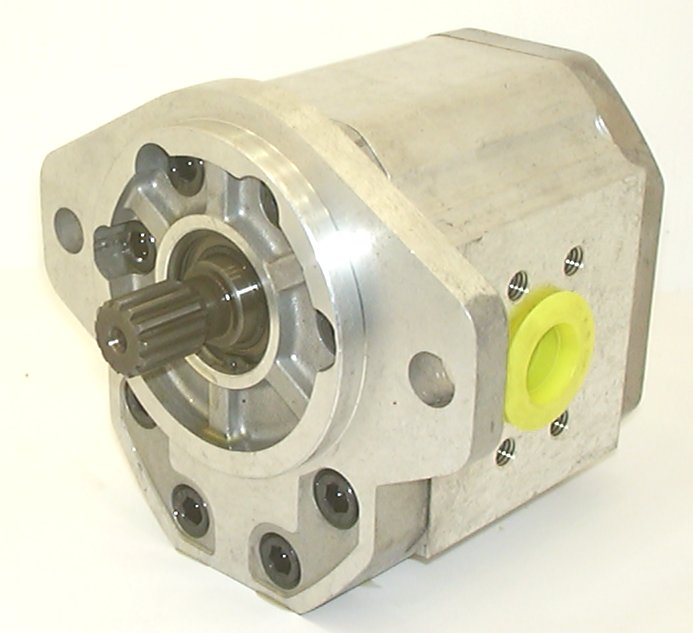

SNP3NN/038LN07SAP1A4A3NNNN/NNNNNHYDRAULIC GEAR PUMPSNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 37.9cc / rev (37.9 Litres at 1000 rpm).SAE B 13 tooth spline shaft, Nominal Diameter: 7/8” (22.22mm), Actual Diameter: 21.806mm, J498-13T 16/32DP Flat root side fit, 41.2mm stand out from face of flange.SAE A 2 bolt mounting flange 5.75/5" [146.05mm] slotted holes with a pilot 4" (101.6mm) diameter x 9.5mm high.SAE split flange with 4 tapped holes in the shape of a rectangle inlet: 30.18[1.188] x 58.72[2.312], outlet: 26.19[1.031] x 52.37[2.062] (4 holes min. full thread, 20[0.787] deep) inlet: 7/16 14UNC – 2B, outlet: 3/8 16UNF - 2B around a central hole, diameter inlet: 31.8[1.252] PCD, diameter outlet: 25.4[1.00] PCD.Single pump.Nitrile Shaft Seal
Weight (kg) : 6.8
Available Stock: 02
On Order : 0
