SNP3 75D TSSB

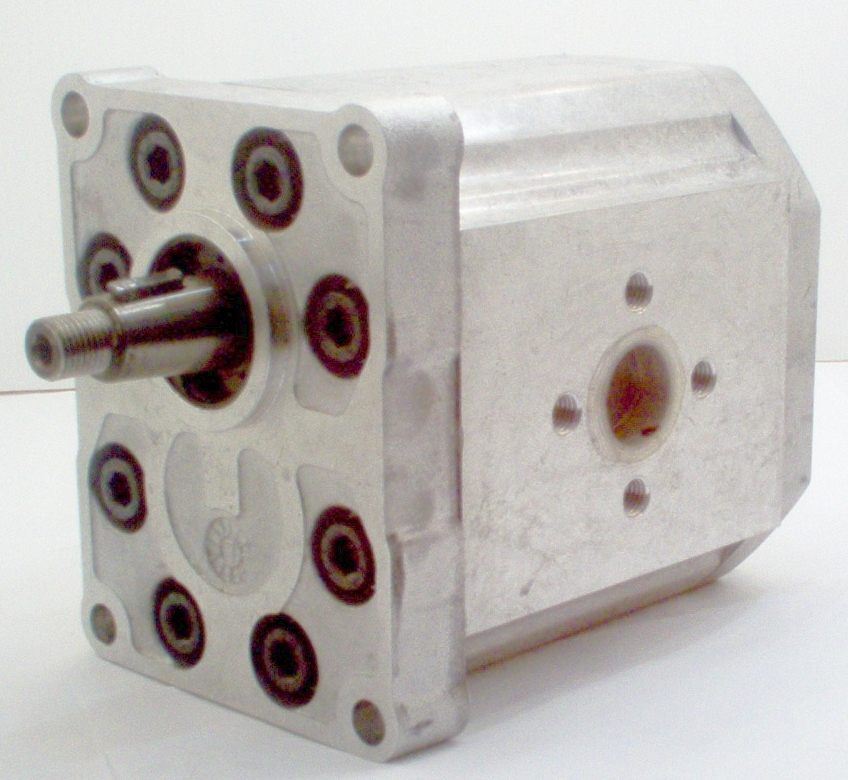

HYDRAULIC GEAR PUMPSNP3 - Group 3 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 74.4cc / rev (74.4 Litres at 1000 rpm).Standard Group 3 1:8 taper shaft (for X and B flange) with M14x1.5 male thread and 4mm wide key, 46.5mm standout from the face of flange.SAE A 2 bolt mounting flange 5.75/5" [146.05mm] slotted holes with a pilot 4" (101.6mm) diameter x 9.5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet:62[2.441] PCD tapped M10 around a central hole Outlet:51[2.008] PCD tapped M10 around a central hole.Single pump.Nitrile Shaft Seal
Weight (kg) : 7.92
Out of Stock :
On Order : 0
