SNP3/A22LTXSA

SNP3 A22L C041_211.25.004.0A

SNW3NN/022LN01BLNNC7C7NNNN/NNNNN

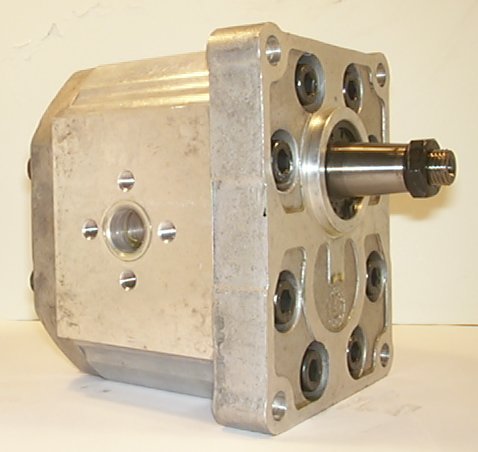

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 22.1cc / rev (22.1 Litres at 1000 rpm).Standard Group 3 1:8 taper shaft (for X and B flange) with M14x1.5 male thread and 4mm wide key, 46.5mm standout from the face of flange.Standard European 4 bolt mounting flange 98.4mm x 128.1mm with a pilot 50.8mm diameter x 5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet: 40[1.575] PCD tapped M8 around a central hole Outlet: 40[1.575] PCD tapped M8 around a central hole.Modular Front Section.Nitrile Shaft Seal

Weight (kg) : 6.2

Available Stock: 02

On Order : 0
