SNP3 A33L TXOA

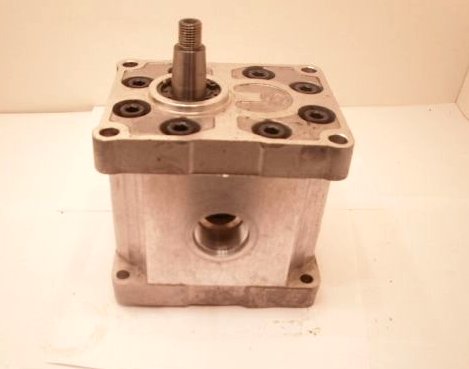

HYDRAULIC GEAR PUMPSNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 33.1cc / rev (33.1 Litres at 1000 rpm).Standard Group 3 1:8 taper shaft (for X and B flange) with M14x1.5 male thread and 4mm wide key, 46.5mm standout from the face of flange.Standard European 4 bolt mounting flange 98.4mm x 128.1mm with a pilot 50.8mm diameter x 5mm high.SAE O ring (UN) threaded ports: Inlet 1 5/8-12UN-2B and outlet 1 5/16-12UN-2B.Modular Front Section.Nitrile Shaft Seal
Weight (kg) : 6.46
Available Stock: 02
On Order : 0
