SNP3 A48L C041
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP3 A48L C041
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP3/A48LTXSA

SNP3 A48L C041

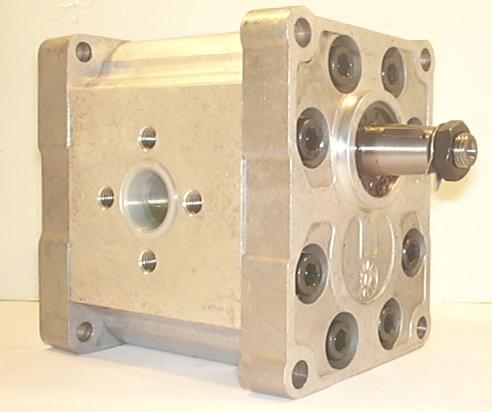

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Anti-clockwise Rotation.Displacement: 48.3cc / rev (48.3 Litres at 1000 rpm).Standard Group 3 1:8 taper shaft (for X and B flange) with M14x1.5 male thread and 4mm wide key, 46.5mm standout from the face of flange.Standard European 4 bolt mounting flange 98.4mm x 128.1mm with a pilot 50.8mm diameter x 5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet:51[2.008] PCD tapped M10 around a central hole Outlet: 51[2.008] PCD tapped M10 around a central hole.Modular Front Section.Nitrile Shaft Seal

Weight (kg) : 7.1

Out of Stock :

On Order : 0
