White House Products Ltd - Hydraulic Pump Supplier
SNP3 C26L KDTA
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number
SNP3 C26L KDTA
Please do not rely solely on the image when ordering. Contact sales@whp.co.uk if you have not matched by part number

SNP3/C26LKDTA

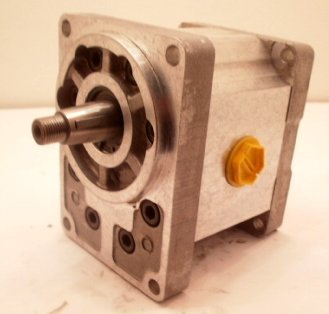

SNP3 C26L KDTA

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 26.2cc / rev (26.2 Litres at 1000 rpm).Standard Group 3 1:5 taper shaft with M16 x 1.5 male thread and 5mm key, 51mm standout from the face of flange.DIN Group 3, 4 Bolt mounting flange, 102mm x 145mm, with a pilot diameter 105mm x 8mm high.BSP threaded port Inlet: 3/4 BSP Outlet 3/4 BSP.Modular Front Section.Nitrile Shaft Seal

Weight (kg) : 7

Out of Stock :

On Order : 0
