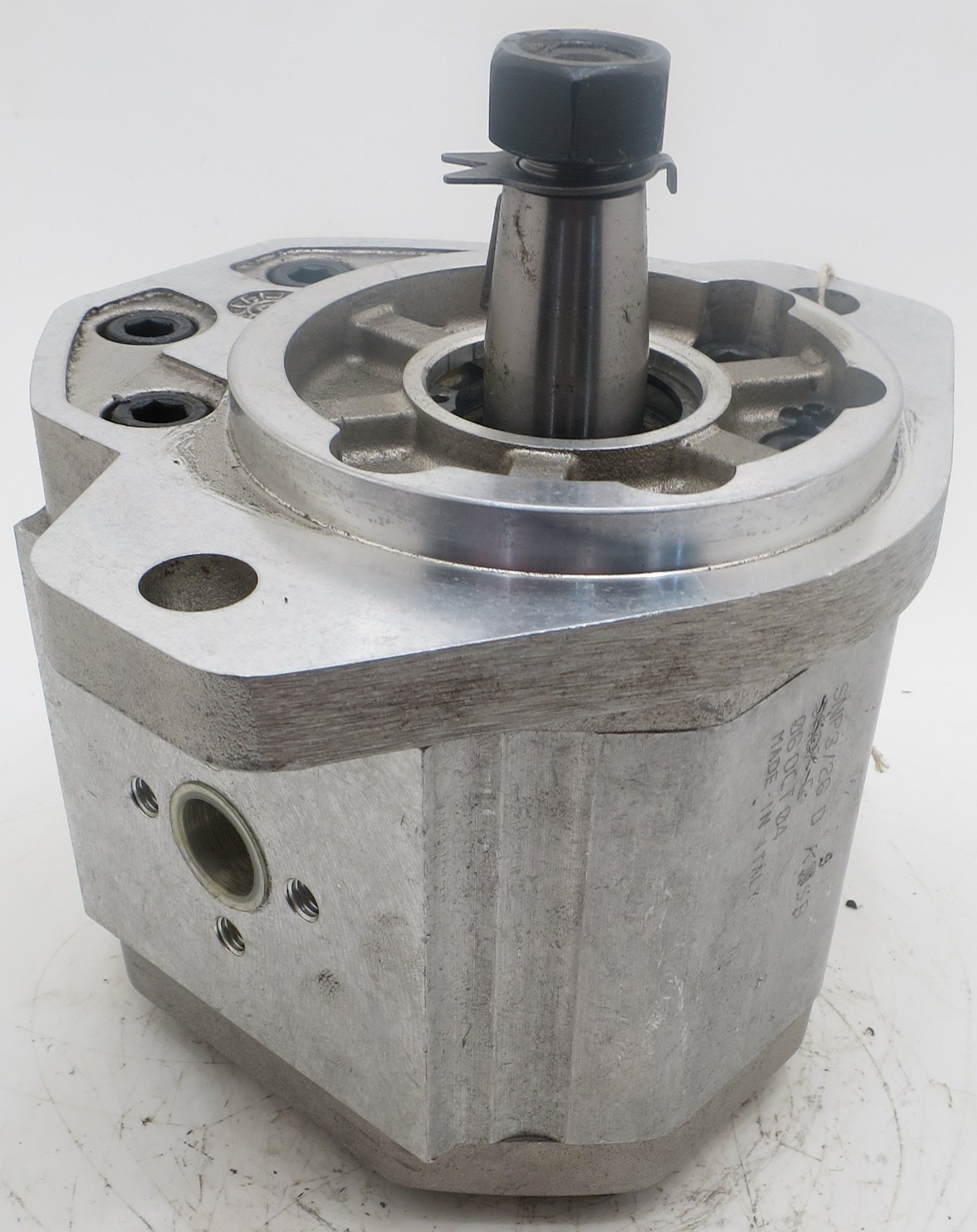

SNP3 C26L KSSB
HYDRAULIC GEAR PUMPSNP3 - Group 3 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 26.2cc / rev (26.2 Litres at 1000 rpm).Standard Group 3 1:5 taper shaft with M16 x 1.5 male thread and 5mm key, 51mm standout from the face of flange.SAE A 2 bolt mounting flange 5.75/5" [146.05mm] slotted holes with a pilot 4" (101.6mm) diameter x 9.5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet: 40[1.575] PCD tapped M8 around a central hole Outlet: 40[1.575] PCD tapped M8 around a central hole.Single pump.Nitrile Shaft Seal
Weight (kg) : 6.4
Out of Stock :
On Order : 0
