SNP3/C90LSSSA

SNP3 C90L SC47.C

SNW3NN/090RN07SLNNCDCANNNN/NNNNN

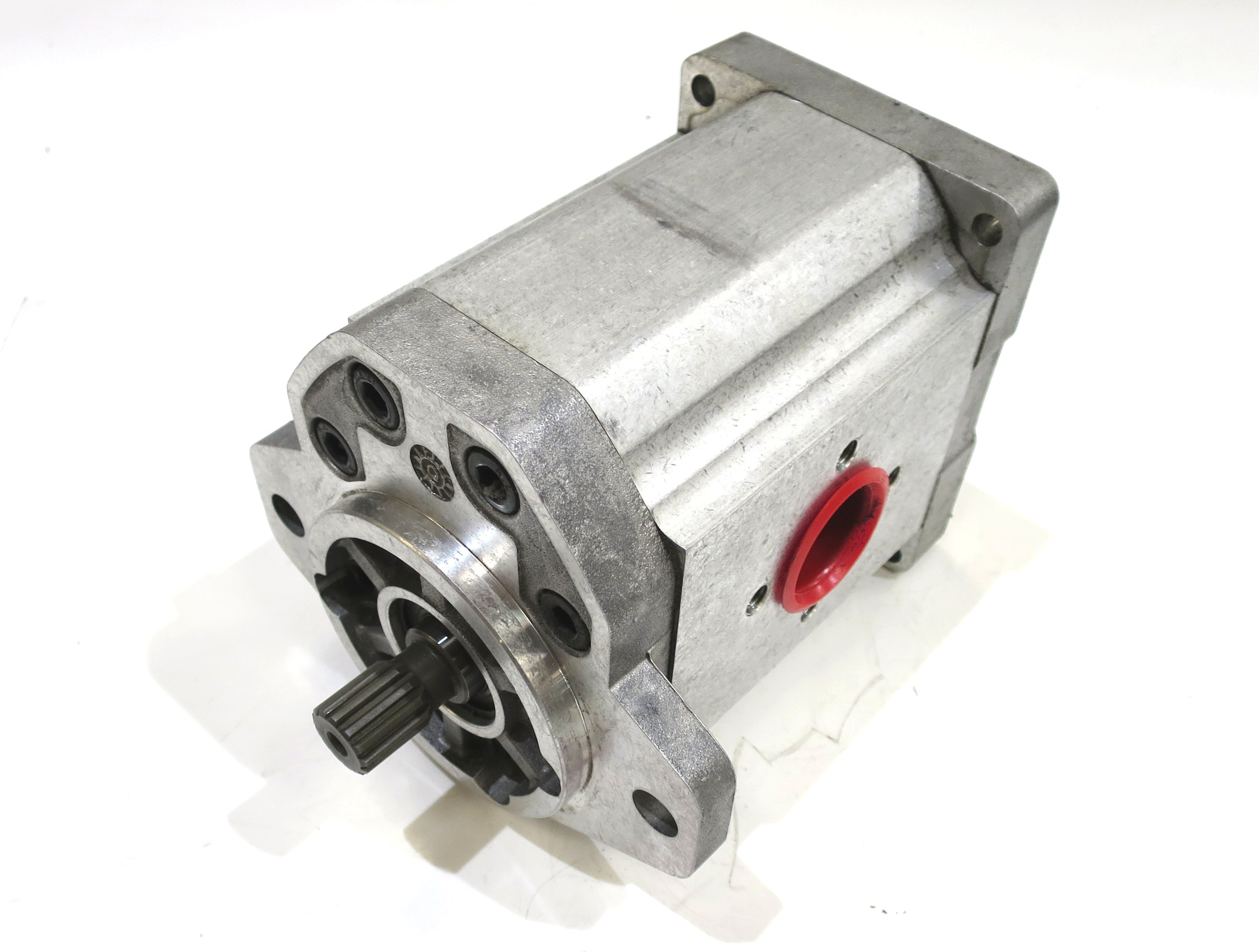

HYDRAULIC GEAR PUMP

SNP3 - Group 3 Hydraulic Gear Pump.Clockwise Rotation.Displacement: 88.2cc / rev (88.2 Litres at 1000 rpm).SAE B 13 tooth spline shaft, Nominal Diameter: 7/8” (22.22mm), Actual Diameter: 21.806mm, J498-13T 16/32DP Flat root side fit, 41.2mm stand out from face of flange.SAE A 2 bolt mounting flange 5.75/5" [146.05mm] slotted holes with a pilot 4" (101.6mm) diameter x 9.5mm high.Flange ports with 4 tapped holes in the shape of a diamond Inlet:62[2.441] PCD tapped M10 around a central hole Outlet:51[2.008] PCD tapped M10 around a central hole.Modular Front Section.Nitrile Shaft Seal

Weight (kg) : 8.6

Out of Stock :

On Order : 0
